Remove ornamental grille
NOTE:
RISK OF DAMAGE
Mechanical effects .
Paint damage .
Mechanical effects .
Paint damage .
- Mask those working areas at risk with yellow plastic adhesive tape.
- Remove and install heavy or bulky components with the aid of another person/other persons.
NOTE:
TECHNICAL INFORMATION
Notes for the gap dimensions of the body form the basis of this REP and it is mandatory to observe them.
For additional information see: BODY GAP DIMENSIONS (COOPER 4-DOOR HATCHBACK, 2020-2023)
Notes for the gap dimensions of the body form the basis of this REP and it is mandatory to observe them.
For additional information see: BODY GAP DIMENSIONS (COOPER 4-DOOR HATCHBACK, 2020-2023)
Preliminary work
- Refer to REMOVING FRONT BUMPER COVER .

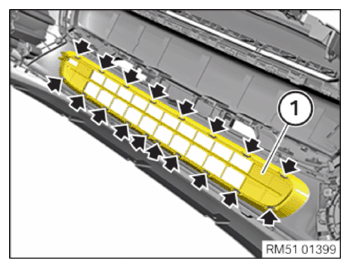

- Detach and remove the ornamental grille (1) from the detents (arrows).
