Install spoiler (center)

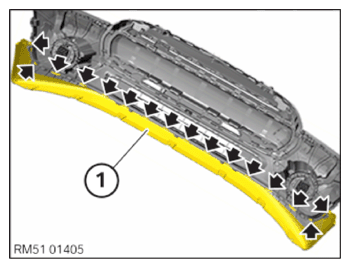

Correctly position the center spoiler (1) and engage at detents (arrows).

G15441330

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

Refer to INSTALLING BUMPER COVER, FRONT .
