51 34 171 Replacing rear left or right door window

WARNING: This page is about a different car, the 2019 MINI Cooper, 2018 MINI Cooper, 2017 MINI Cooper, 2016 MINI Cooper, and 2015 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Injury hazard!
Carry out work on the power windows only when the power window motor is de-energized (unplug connector).

Preliminary work needed:

Remove SOUND INSULATION ON REAR DOOR
Remove OUTER WINDOW CHANNEL STRIP
Partially remove the RUBBER WINDOW SEAL (in the rear)

Removal:

Shift door window glass (1) until the stop of the stand (2) can be operated.

IMPORTANT: Injury hazard!
Disconnect plug connection at power window motor (pinch hazard).

Press the stop of the stand (2) outwards using a screwdriver and feed out the door window glass (1) towards the top.

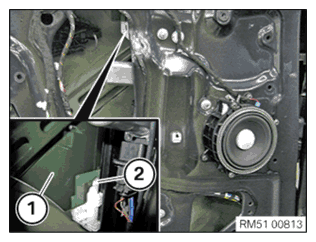

Fig 1: Pressing Stand Stop Outwards Using Screwdriver

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Feed in door window glass (1).

Engage door window glass (1) in the stop of the stand (2).

NOTE: Door window glass (1) must engage properly.

Fig 2: Pressing Stand Stop Outwards Using Screwdriver

Courtesy of BMW OF NORTH AMERICA, INC.
