51 34 211 Remove and install/replace rubber window seal for rear left or right door window glass

WARNING: This page is about a different car, the 2019 MINI Cooper, 2018 MINI Cooper, 2017 MINI Cooper, 2016 MINI Cooper, and 2015 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Preliminary work needed:

Remove OUTER WINDOW CHANNEL STRIP AT REAR DOOR

IMPORTANT: The INSTRUCTIONS ON INSTALLATION OF RUBBER WINDOW SEALS serve as the basis for these repair instructions and must be observed without fail.

Removal:

Partly release rubber window seal for door window glass (1).

Release screws (2) and carefully feed out the triangular trim (3) upwards and remove it.

Fig 1: Releasing Rubber Window Seal For Door Window Glass

Courtesy of BMW OF NORTH AMERICA, INC.

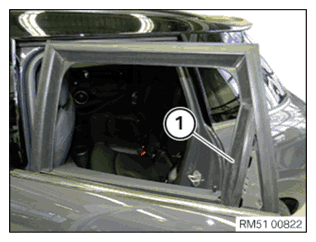

Remove rubber window seal (1) sideways from door window frame.

Pull out rubber window seal (1) from window guide rail and remove.

Fig 2: Pulling Out Rubber Window Seal From Window Guide Rail

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Insert rubber window seal (1) into the guide rail.

Mount rubber window seal (1) on door window frame.

Fig 3: Pulling Out Rubber Window Seal From Window Guide Rail

Courtesy of BMW OF NORTH AMERICA, INC.

Feed in triangular trim (3) and tighten screws (2).

Carefully mount rubber window seal (1).

Fig 4: Releasing Rubber Window Seal For Door Window Glass

Courtesy of BMW OF NORTH AMERICA, INC.

Required reworking:

Install OUTER WINDOW CHANNEL STRIP AT REAR DOOR
