51 48 070 Removing and installing/replacing sound insulation in left or right rear door
WARNING: This page is about a different car, the 2019 MINI Cooper, 2018 MINI Cooper, 2017 MINI Cooper, 2016 MINI Cooper, and 2015 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
INSTRUCTIONS FOR SOUND INSULATION are an essential part of these repair instructions and must be followed without fail.
Do not detach sound insulation in jerks (risk of damage).
Ensure watertightness of sound insulation after every repair (water ingress).
Do not detach sound insulation in jerks (risk of damage).
Ensure watertightness of sound insulation after every repair (water ingress).
Preliminary work needed:
- Remove DOOR TRIM PANEL
Removal:
NOTE:

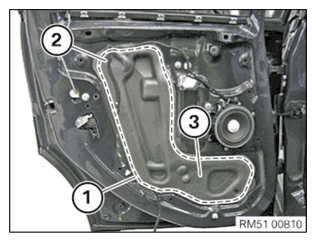

Position of sealing bead (1).
Feed wires (2) out of sound insulation (3).
IMPORTANT:
When cutting through sealing bead (1), do not damage sound insulation (2) and if necessary cable.
With a suitable sharp cutting tool (3) cut through sealing bead (1) of sound insulation (2) in the area to be detached.
When refitting:
Damaged sound insulation must be replaced.
Lay butyl cord with 4 mm onto the original butyl cord.
Replacement:
Remove residual butyl at the door and clean the adhesive area.
Air drying time: 1 minute
IMPORTANT:
Bonding surfaces must be dry and free of dust and grease.
Once it has been cleaned, do not touch the adhesive area with bare hands.
Once it has been cleaned, do not touch the adhesive area with bare hands.
Lay 6 mm dia. butyl cord in specified adhesive area onto the sound insulation.
NOTE:
Position of butyl cord (1) on sound insulation (2).
NOTE:
A mark (2) is provided all round on the sound insulation (1).
Butyl cord (3) rests on or inside the marking (2).
Heat butyl cord (3) (hot air blower) and press sound insulation (1) on firmly all-around.
Contact pressure with hand roller: approx. 20 N/cm
Manual contact pressure: approx. 10 N/cm
NOTE:
Firm thumb pressure has approx. 30 N/cm
