51 16 366 Removing and installing/replacing right glove compartment with housing

When working on trim panel components, make sure that visible surfaces are not scratched or damaged (e.g. by sharp-edged tools).

Preliminary work needed:

• Remove SIDE PANEL ON DASHBOARD ON RIGHT

Removal:

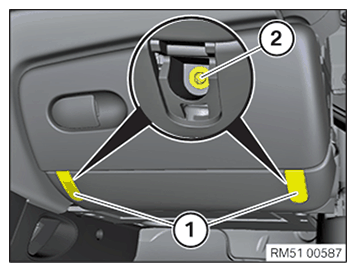

Pull out covers (1) and release the underlying screws (2).

Fig 1: Releasing Underlying Screws

Courtesy of BMW OF NORTH AMERICA, INC.

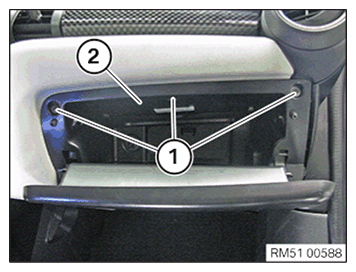

Unscrew the screws (1).

Remove glove compartment (2) inwards and disconnect associated plug connections.

Fig 2: Removing Glove Compartment

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

When replacing, swap over the following parts:

• GLOVE COMPARTMENT DAMPER
• GLOVE COMPARTMENT COVER
• GLOVEBOX LIGHT

Connect associated connector and connect air hose if required.

Insert glove compartment (2) and tighten with screws (1).

Fig 3: Removing Glove Compartment

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten down screws (2).

Clip in the covers (1).

Fig 4: Releasing Underlying Screws

Courtesy of BMW OF NORTH AMERICA, INC.
