51 16 365 Removing and installing/replacing glove compartment cover

WARNING: This page is about a different car, the 2019 MINI Cooper, 2018 MINI Cooper, 2017 MINI Cooper, 2016 MINI Cooper, and 2015 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Preliminary work needed:

Remove RIGHT GLOVE COMPARTMENT WITH HOUSING

Removal:

Release damper (1) from retainer (2) and twist approx. 40° in arrow direction.

Fig 1: Releasing Damper From Retainer

Courtesy of BMW OF NORTH AMERICA, INC.

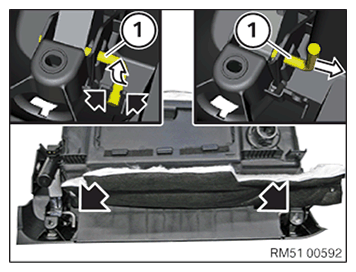

Release hinge bolt (1) from stop and twist until hinge bolt (1) can be pulled out.

Repeat process on second hinge bolt (1).

Feed out glove box lid.

Fig 2: Releasing Hinge Bolt From Stop

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

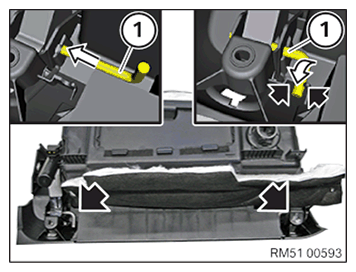

Feed in glove box lid.

Insert hinge bolt (1) and clip in to stop.

Repeat procedure for second hinge bolt (1).

Fig 3: Feeding Glove Box Lid

Courtesy of BMW OF NORTH AMERICA, INC.

Lock damper (1) on retainer (2).

Fig 4: Locking Damper On Retainer

Courtesy of BMW OF NORTH AMERICA, INC.
