51 16 383 Remove and install/replace damper for glove compartment

WARNING: This page is about a different car, the 2019 MINI Cooper, 2018 MINI Cooper, 2017 MINI Cooper, 2016 MINI Cooper, and 2015 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Preliminary work needed:

Remove RIGHT GLOVE COMPARTMENT WITH HOUSING

Removal:

Release damper (1) from the fixing holder (2).

Twist damper (1) approx. 90° in arrow direction and remove.

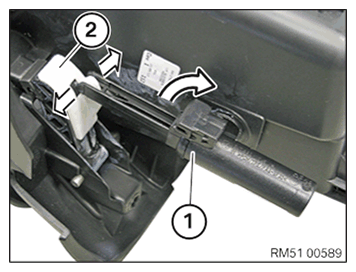

Fig 1: Releasing Damper From Retainer

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Insert damper (1) and twist approx. 90° in arrow direction.

Engage damper (1) on retainer (2).

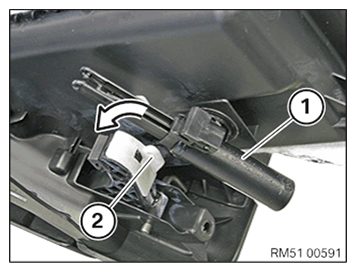

Fig 2: Locking Damper On Retainer

Courtesy of BMW OF NORTH AMERICA, INC.
