51 21 125 Removing and installing/replacing support for left or right outer door handle with lock cylinder

WARNING: This page is about a different car, the 2019 MINI Cooper, 2018 MINI Cooper, 2017 MINI Cooper, 2016 MINI Cooper, and 2015 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Preliminary work needed:

Remove OUTER HANDLE
Remove FRONT SOUND INSULATION

Removal:

Remove screw (1).

Slide support (2) forwards and feed out inwards.

Fig 1: Removing Front Sound Insulation

G11649171

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: If a cover is installed on the support (1), it does not have to be disassembled.

Shift support (1) forwards and detach operating rod (2) from door lock (3).

Feed out support (1) from door.

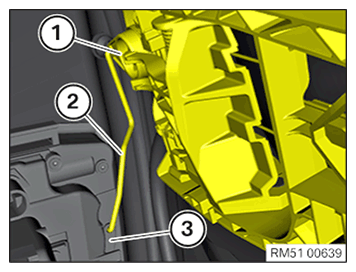

Fig 2: Detaching Operating Rod From Door Lock

G11649172

Courtesy of BMW OF NORTH AMERICA, INC.

Detach cable (1) and remove support.

Fig 3: Detaching Support Cable

G11649174

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Remount LOCK CYLINDER .

Installation:

Attach cable (1).

Fig 4: Detaching Support Cable

G11649174

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: If a cover is installed on the support (1), it does not have to be disassembled.

Feed in support (1) into door.

Attach operating rod (2) in door lock (3).

Fig 5: Detaching Operating Rod From Door Lock

G11649172

Courtesy of BMW OF NORTH AMERICA, INC.

Feed in support (2) into mounting towards the rear.

Tighten screw (1).

Tightening torque 51 21 6AZ .

Fig 6: Feeding Support Into Mounting

G11649177

Courtesy of BMW OF NORTH AMERICA, INC.

Required reworking:

Install OUTER DOOR HANDLE
Install SOUND INSULATION
