51 21 140 Removing and installing/replacing complete lock cylinder in left or right front door

WARNING: This page is about a different car, the 2019 MINI Cooper, 2018 MINI Cooper, 2017 MINI Cooper, 2016 MINI Cooper, and 2015 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Preliminary work needed:

Remove the OUTER DOOR HANDLE SUPPORT

Removal:

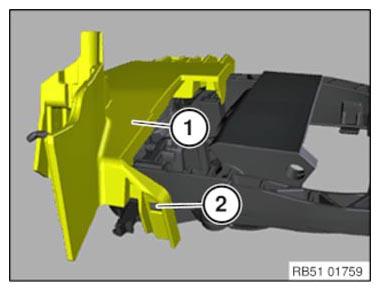

Detach trim (1) at catch (2) and remove.

Fig 1: Detaching Trim And Catch

Courtesy of BMW OF NORTH AMERICA, INC.

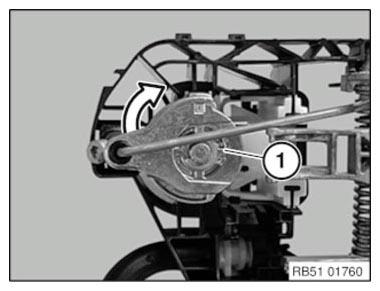

Twist lock cylinder (1) in arrow direction and remove.

Fig 2: Twisting Lock Barrel

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Rotate lock cylinder (1) opposite to arrow direction and engage.

Fig 3: Twisting Lock Barrel

Courtesy of BMW OF NORTH AMERICA, INC.

Engage cover (1) on detent (2).

Fig 4: Detaching Trim And Catch

Courtesy of BMW OF NORTH AMERICA, INC.

Required reworking:

Install the OUTER DOOR HANDLE SUPPORT
