41 62 014 Adjusting trunk lid

WARNING: This page is about a different car, the 2019 MINI Cooper, 2018 MINI Cooper, 2017 MINI Cooper, 2016 MINI Cooper, and 2015 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Attention:

Do not damage adjoining body parts.

Minor corrections (realignment work) are permitted if the existing adjustment options are not sufficient.

Read contents of BODY, GENERAL .

Observe GAP DIMENSIONS .

The trunk lid must be provided with all attachment parts for correct adjustment.

Preliminary work needed:

Remove the REAR SPOILER .
Partially loosen rear HEADLINING .

Adjustment points for adjusting trunk lid to fit.

Fig 1: Locating Tailgate Adjustment Points

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: When the trunk lid is closed, the striker must not bump or scrape against the tailgate lock.

If necessary, remove STRIKER .

Slacken nut (1) on both sides.

Adjust trunk lid laterally, longitudinally and vertically. Tighten nuts.

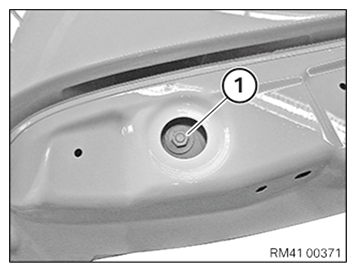

Fig 2: Locating Nut

Courtesy of BMW OF NORTH AMERICA, INC.

If the range of adjustment is insufficient, slacken nut (1) on both sides.

Adjust height of trunk lid. Tighten nuts.

Fig 3: Locating Nut

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

Tighten all nuts to the specified torque: 41 61 1AZ/2AZ .
Adjust the TAILGATE LATCH if necessary.
Adjust STOP PAD .
Touch up unpainted surfaces in the appropriate color.
