51 71 412 Removing and installing/replacing rear spoiler

WARNING: This page is about a different car, the 2019 MINI Cooper, 2018 MINI Cooper, 2017 MINI Cooper, 2016 MINI Cooper, and 2015 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

REMOVAL:

Lever out seal plugs (1) and release screws underneath.

Fig 1: Seal Plugs Location

Courtesy of BMW OF NORTH AMERICA, INC.

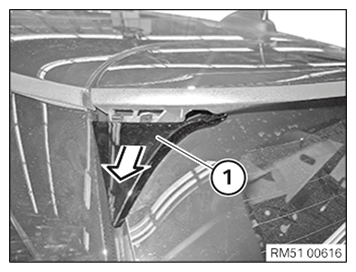

Unclip cover (1) on left and right in arrow direction and remove.

Fig 2: Removing Cover On Left And Right

Courtesy of BMW OF NORTH AMERICA, INC.

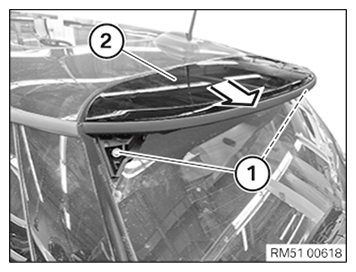

Unscrew the screws (1).

Remove rear spoiler (2).

Fig 3: Removing Rear Spoiler

Courtesy of BMW OF NORTH AMERICA, INC.

INSTALLATION:

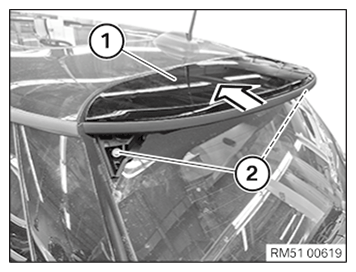

Mount rear spoiler (1) in arrow direction.

Tighten down screws (2).

Tightening torque 51 71 4AZ .

Fig 4: Mounting Rear Spoiler

Courtesy of BMW OF NORTH AMERICA, INC.

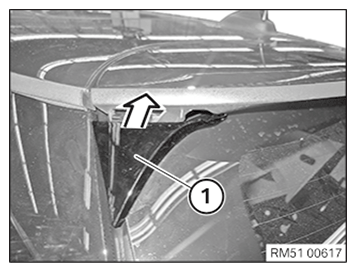

Engage cover (1) on left and right.

Fig 5: Engaging Cover On Left And Right

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten screws (1) and mount seal plug.

Tightening torque 51 71 3AZ .

Fig 6: Seal Plugs Location

Courtesy of BMW OF NORTH AMERICA, INC.
