52 15 404 Replacing seat cover for front passenger seat (sport seat)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2019 MINI Cooper, 2018 MINI Cooper, 2017 MINI Cooper, 2016 MINI Cooper, and 2015 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

52 0 050

WARNING: Danger of injury!
The seat frame has very sharp edges that can cause injuries from cuts.
Exercise extreme caution and wear protective gloves as required when carrying out any repair work in the area of the seat frame.

Attention !

Risk of damage on sharp-edged seat mechanism.

Guide all cables carefully through seat and backrest mechanism.

Make sure cable is routed without kinks and tension.

Make sure plug connections are correctly locked.

Make sure connectors are correctly seated in latch mechanisms.

Attention !

US/CDN front passenger seat (with CIS mat) only:

A faulty facing may only be replaced completely with the CIS mat.

New facing is supplied with CIS mat and, if necessary, seat heating.

After installation, the CIS mat must be enabled with the diagnosis system.

Individual parts not available.

Enabling seat occupancy detector (CIS mat):

Connect BMW diagnosis system
Carry out service function or test module
Delete fault memory if necessary

Attention !

Microencapsulated screws must be coated with Loctite if they are to be reused
Screw connection must be completed within 20 min. (start of hardening)
Microencapsulated screws must not be retightened
Thread of nut must be cleaned beforehand in event of repeated use

Necessary preliminary tasks:

Removal:

Use of a universal seat mount is recommended for carrying out professional repairs.

Fig 1: Universal Seat Mount

Courtesy of BMW OF NORTH AMERICA, INC.

Unhook welt (1).

Version with seat heating only:

Unlock and disconnect connector (2).

Feed out cable.

Attention !

Feed the wiring harness carefully through the seat and backrest mechanism as the edges of the frame can be sharp.

Fig 2: Unhooking Welt And Unlocking/Disconnecting Connector

Courtesy of BMW OF NORTH AMERICA, INC.

Loosen clips (1) on the left and right side.

Fig 3: Seat Cover Clips

Courtesy of BMW OF NORTH AMERICA, INC.

Detach all-round piping (1) and remove the seat cover (2) with the facing.

If necessary, feed out cable.

Fig 4: Welt And Seat Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Release all clamps.

Remove seat cover from upholstery.

Attention !

Remove all remnants of clamps from seat cover and upholstery.

Fig 5: Seat Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Position seat cover.

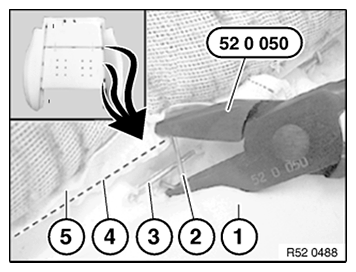

Bend new clamps (2) with special tool 52 0 050 .

Upholstery
Clamp
Trim wire in upholstery
Trim wire in cover
Seat cover

Fig 6: Bending Clamps With Special Tool (52 0 050)

Courtesy of BMW OF NORTH AMERICA, INC.

Parts: Replace clamps.

Place the seat cover on seat frame.

If necessary, feed in cable.

Place the seat cover (2) with the facing and attach all-round piping (1).

Fig 7: Welt And Seat Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Install clips (1) on the left and right side.

Fig 8: Seat Cover Clips

Courtesy of BMW OF NORTH AMERICA, INC.

Attach welt (1).

Version with seat heating only:

Connect connector (2).

Attention !

Feed the wiring harness carefully through the seat and backrest mechanism as the edges of the frame can be sharp.

Fig 9: Unhooking Welt And Unlocking/Disconnecting Connector

Courtesy of BMW OF NORTH AMERICA, INC.

Install backrest (5).

If necessary, feed in cable.

Tighten screws (4) on left and right.

Tightening torque 52 10 2AZ .
