52 13 043 Remove and install or replace outer cover on left or right front seat

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2019 MINI Cooper, 2018 MINI Cooper, 2017 MINI Cooper, 2016 MINI Cooper, and 2015 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

2 298 505

Necessary preliminary tasks:

Remove LEVER FOR SEAT HEIGHT ADJUSTMENT on front seat

Removal:

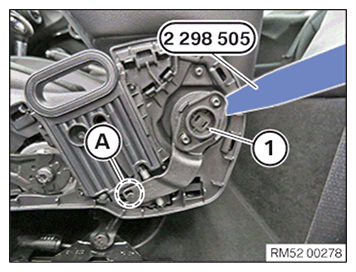

Carefully lever out relay lever (1) from front seat by means of special tool 2 298 505 .

Feed out relay lever (1) in area (A).

Fig 1: Removing Relay Lever

G11649541

Courtesy of BMW OF NORTH AMERICA, INC.

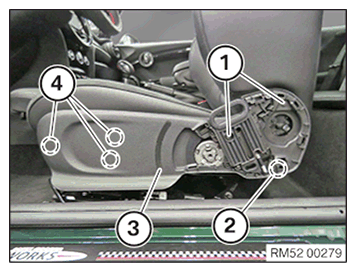

Release screws (1).

Release screw (2) from bottom.

Feed out cover (3) from guides (4) in forward direction.

Fig 2: Cover, Guides And Screws

G11649542

Courtesy of BMW OF NORTH AMERICA, INC.

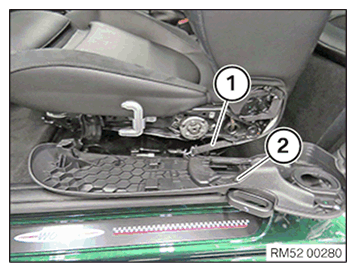

Detach tensioning strap (1) from cover (2).

Fig 3: Tensioning Strap And Cover

G11649543

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Attach tensioning strap (1) to the cover (2).

Fig 4: Tensioning Strap And Cover

G11649543

Courtesy of BMW OF NORTH AMERICA, INC.

Slide in cover (3) from front into the guides (4).

Tighten down screws (1).

Tighten screw (2) from bottom.

Fig 5: Cover, Guides And Screws

G11649542

Courtesy of BMW OF NORTH AMERICA, INC.

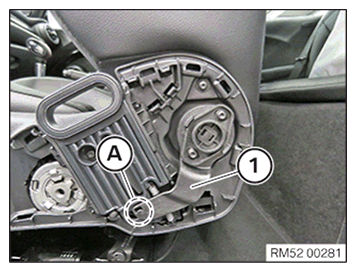

Attach relay lever (1) in area (A).

Connect relay lever (1) to the shaft of the backrest.

Fig 6: Relay Lever

G11649546

Courtesy of BMW OF NORTH AMERICA, INC.
