REP-TAT-P-2435-25 Replacing the transmission input-RPM sensor (GA8G45 / F22AW)
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2021 MINI Cooper, 2020 MINI Cooper, 2019 MINI Cooper, 2018 MINI Cooper, and 2017 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
When the engine is stopped after the completion of trip, it may be necessary to run the electric fan. In rare cases, operation of the electric fan can last up to 11 min. This protects the components. In this case, replacing the electric fan will not remedy the problem!
Necessary preliminary work:
- Refer to DISCONNECTING THE BATTERY GROUND LEAD
- Refer to REMOVING INTAKE PORT
- Refer to REMOVING INTAKE SILENCER HOUSING
- Refer to REMOVING CROSS CONNECTION
- Drain the oil from the transmission.
- Refer to REMOVING FAN COWL WITH ELECTRIC FAN
- Detach the transmission oil cooler from the transmission.
- Refer to REMOVING THE COVER (OIL PAN) FOR THE SWITCHING DEVICE
- Refer to DETACHING THE SWITCHING DEVICE (GA8G45 / F22AW)
- Replacing the transmission input-RPM sensor (GA8G45 / F22AW)

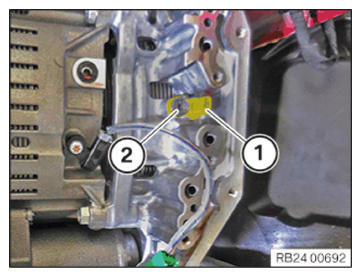

- Release the screw (2).
- Remove the transmission input-RPM sensor (1).
Parts: Gearbox input-speed sensor
- Install new transmission input-RPM sensor (1).
- Tighten down screw (2).
TIGHTENING TORQUES SPECIFICATION
| Gearbox input-speed sensor | |
|---|---|
| M6x14 | |
| Torque 6Nm | |
Follow-up work:
- Refer to INSTALLING THE SWITCHING DEVICE
- Refer to INSTALLING THE COVER (OIL PAN) FOR THE SWITCHING DEVICE
- Fasten the transmission oil cooler on the transmission. Tightening torque: 24 11 4AZ .
- Refer to INSTALLING FAN COWL WITH ELECTRIC FAN
- Refer to CONNECTING THE BATTERY GROUND LEAD
- Refer to REPLENISHING THE OIL LEVEL IN THE AUTOMATIC TRANSMISSION
- Refer to INSTALLING CROSS CONNECTION
- Refer to INSTALLING INTAKE SILENCER HOUSING .
- Refer to INSTALLING INTAKE PORT
