Replacing right engine mount (Cooper base)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2021 MINI Cooper, 2020 MINI Cooper, 2019 MINI Cooper, 2018 MINI Cooper, and 2017 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Preliminary work needed:

Remove front UNDERBODY PROTECTION .
Remove THRUST FIELD .
Support engine/transmission with jack.
Remove RIGHT HEADLIGHT .

Removal:

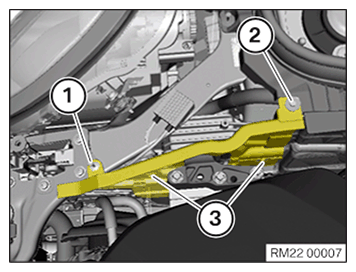

Release screw (2) and expanding rivet (1).

Loosen screws (3).

Remove upper and lower partition wall.

Courtesy of BMW OF NORTH AMERICA, INC.

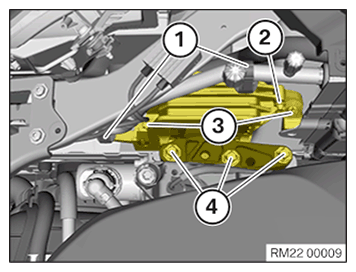

Remove refrigerant line from holder (1).

Detach holder (2) for refrigerant line.

Release screws (3) and screws (4).

Remove engine mount.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Install engine mount.

Tighten screws (3) and screws (4).

Parts : Replace screws (4).

Tightening torque 22 11 1/2AZ .

Tighten holder (2) for refrigerant line.

Clip refrigerant line into holder (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Install upper and lower partition wall.

Tighten down screws (3).

Tighten screw (2) and secure expanding rivet (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

Remove jack from below engine/transmission.
Install THRUST FIELD .
Install front UNDERBODY PROTECTION .
Install the RIGHT HEADLIGHT .
