61 13... Special tools for wiring harness repairs

Special tools required:

• 61 0 300
• 61 0 400
• 61 1 100
• 61 4 320
• 61 0 200
• 61 0 210
• 61 0 220
• 61 0 230
• 61 0 240

Fig 1: Special Tools Kit (1 Of 3)

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 2: Special Tools Kit (2 Of 3)

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 3: Special Tools Kit (3 Of 3)

Courtesy of BMW OF NORTH AMERICA, INC.

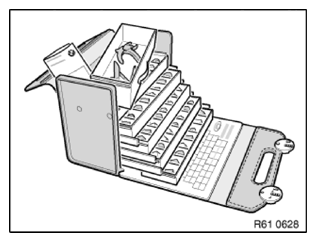

Fig 4: Special Tools And Individual Parts

Courtesy of BMW OF NORTH AMERICA, INC.

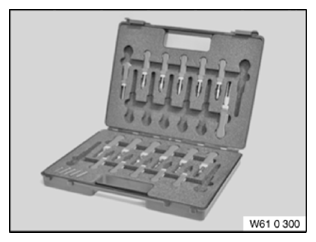

Release and press-out tool:

• Special tool 61 0 300 (BMW)
• Special tool 61 0 400 (MINI)
• Special tool 61 1 100 (engine)

Refer to instructions:

• NOTES FOR OPENING CONTACTS AND LOCKS OF DIFFERENT CONNECTOR CONTACT SYSTEMS

Fig 5: Special Tools Kit

Courtesy of BMW OF NORTH AMERICA, INC.

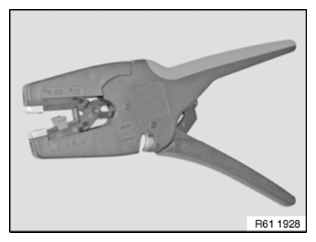

Cutting to length and strip off insulation from cables:

Wire stripper MultiStrip10

Refer to instructions:

• CUTTING OFF/STRIPPING INSULATION/CUTTING TO LENGTH

Fig 6: Wire Stripper

Courtesy of BMW OF NORTH AMERICA, INC.

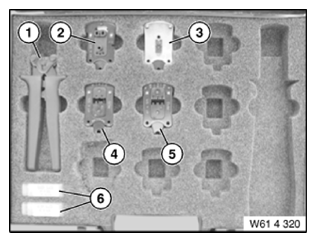

Crimping stop parts (small contacts) and butt connectors:

• Special tool 61 4 320

1. Tool without crimping head
2. Crimping head (for STRIPPING/CUTTING  fiber-optic cables to length)
3. Crimping head (for crimping FIBER-OPTIC CABLE CONTACTS)
4. Crimping head (for crimping MQS CONTACTS )
5. Crimping head (for crimping MPQ CONTACTS )
6. Replacement blade (face-cutting fiber-optic cables)
7. Replacement blade with tool (insulation stripping unit)
8. Universal crimping head
Fig 7: Special Tools Kit
Courtesy of BMW OF NORTH AMERICA, INC.

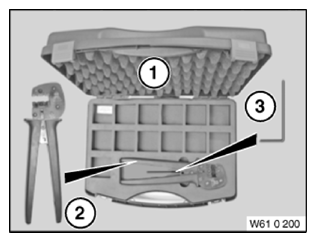

Crimping stop parts (large contacts) and butt connectors:

• Special tool 61 0 200 (crimping set)
• Special tool 61 0 210 (matrix set SLK 8)
• Special tool 61 0 220 (matrix set SLK 2.8)
• Special tool 61 0 230 (matrix set MAK 8/DFK4)
• Special tool 61 0 240 (butt connector 4.0 - 6.0 mm² )

Fig 8: Special Tools Kit

Courtesy of BMW OF NORTH AMERICA, INC.
