61 13... Crimping optical fibers

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2019 MINI Cooper, 2018 MINI Cooper, 2017 MINI Cooper, 2016 MINI Cooper, and 2015 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

61 4 320

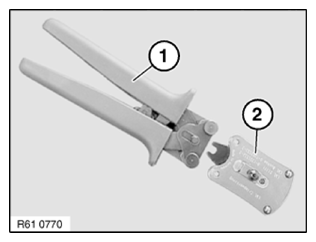

To crimp optical fibers, use hand pliers 61 4 321 (1) in conjunction with crimping head 61 4 323 (2) from crimping set 61 4 320 .

NOTE: Hand pliers (1) open automatically until stop when handles are pressed together.

Fig 1: Crimp Optical Fibers And Hand Pliers

G11774856

Courtesy of BMW OF NORTH AMERICA, INC.

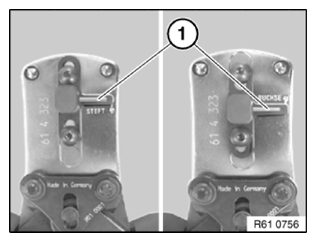

Shift contact guide by means of stop lever (1) into corresponding position (pin contact or jack).

Fig 2: Locating Stop Lever

G11774857

Courtesy of BMW OF NORTH AMERICA, INC.

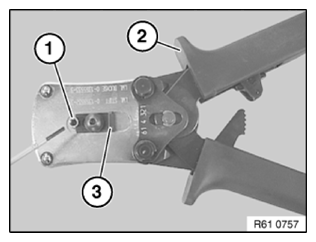

Open hand pliers (2).

Place pin contact or jack (1) in crimping head and secure with locking lever (3).

Fig 3: Placing Pin Contact And Jack In Crimping Head

G11774858

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Follow procedure for CUTTING OFF AND STRIPPING INSULATION FROM CABLES .

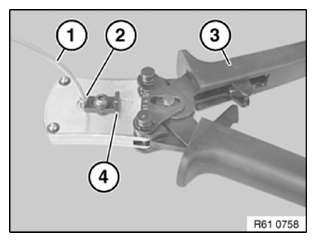

Insert stripped optical fiber(1) until stop into pin contact or jack (2).

Close hand pliers (3) fully.

Open hand pliers (3) and locking lever (4).

Remove optical fiber (1).

Fig 4: Inserting Stripped Optical Fiber Until Stop Into Pin Contact And Jack

G11774859

Courtesy of BMW OF NORTH AMERICA, INC.

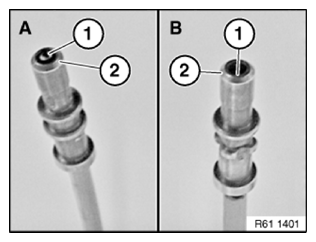

IMPORTANT:

Make sure optical fiber is correctly seated in jack.

Correct (A)

End of optical fiber (1) must be flush with tip of pin contact (2).

Incorrect (B)

End of optical fiber (1) is not flush with tip of pin contact (2).

Fig 5: Optical Fiber End And Pin Contact Tip

G11774860

Courtesy of BMW OF NORTH AMERICA, INC.
