61 13... Crimping Micro Quadlock System contacts (MQS)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2019 MINI Cooper, 2018 MINI Cooper, 2017 MINI Cooper, 2016 MINI Cooper, and 2015 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

61 4 320

To crimp MPQ contacts, use hand pliers 61 4 321 (1) in conjunction with crimping head 61 4 324 (2) from crimping set 61 4 320 .

NOTE: Hand pliers (1) open automatically until stop when handles are pressed together.

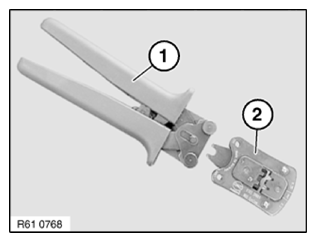

Fig 1: Crimp MPQ Contacts And Hand Pliers

G11774852

Courtesy of BMW OF NORTH AMERICA, INC.

Open hand pliers (1).

Fold up contact carrier (2).

Insert MQS contact (3) in contact carrier (2).

Fold back contact carrier (2).

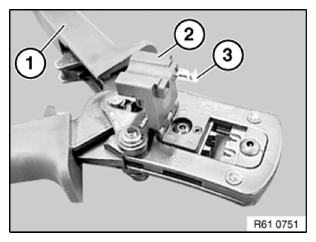

Fig 2: Folding Back Contact Carrier

G11774853

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Follow procedure for CUTTING OFF AND STRIPPING INSULATION FROM CABLES .

Close hand pliers (1) one notch.

Insert stripped cable (2).

Close hand pliers (1) fully.

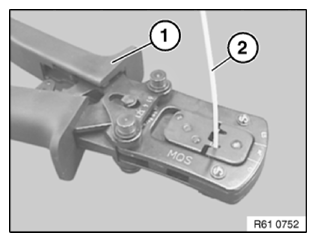

Fig 3: Inserting Stripped Cable

G11774854

Courtesy of BMW OF NORTH AMERICA, INC.

Open hand pliers (1).

Open contact carrier (2) gently and carefully remove MQS contact.

IMPORTANT: Check contact for correct crimping.

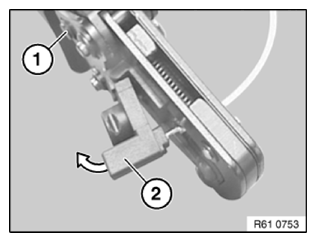

Fig 4: Opening Contact Carrier

G11774855

Courtesy of BMW OF NORTH AMERICA, INC.
