61 13... Crimping Micro Power Quadlock contacts (MPQ)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2019 MINI Cooper, 2018 MINI Cooper, 2017 MINI Cooper, 2016 MINI Cooper, and 2015 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

61 4 320

To crimp MPQ contacts, use hand pliers 61 4 321 (1) in conjunction with crimping head 61 4 325 (2) from crimping set 61 4 320 .

NOTE: Hand pliers (1) open automatically until stop when handles are pressed together.

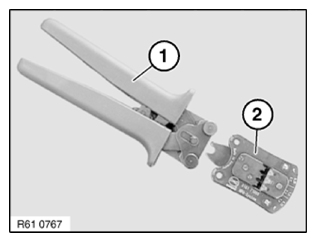

Fig 1: Crimp MPQ Contacts And Hand Pliers

G11774849

Courtesy of BMW OF NORTH AMERICA, INC.

Open hand pliers (1).

NOTE: Place contact (2) with utmost care in designated nest (observe line cross-section) in crimping head (3). Make sure it is exactly positioned.

Place MPQ contact (2) in crimping head (3).

Close hand pliers (1) one notch.

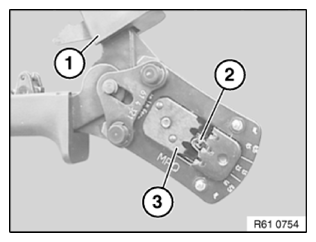

Fig 2: Placing MPQ Contact In Crimping Head

G11774850

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Follow procedure for CUTTING OFF AND STRIPPING INSULATION FROM CABLES .

Insert stripped cable (2).

Close hand pliers (1) fully.

Open hand pliers (1) and remove cable (2).

IMPORTANT: Check contact for correct crimping.

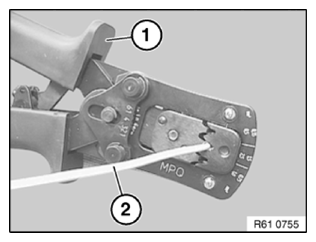

Fig 3: Inserting Stripped Cable

G11774851

Courtesy of BMW OF NORTH AMERICA, INC.
