Detaching and attaching/replacing timing case cover on front at bottom (B36 engine) (Cooper base)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2021 MINI Cooper, 2020 MINI Cooper, 2019 MINI Cooper, 2018 MINI Cooper, and 2017 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

11 4 471
11 4 472
2 469 803
2 357 900

Attention!

When removing the timing case cover, it is absolutely necessary to replace the timing case cover.

It is not permitted to reuse the timing case cover

Attention!

Engines with surface sealant:

Maximum processing time for sealing bead is 10 minutes .

Commissioning of the assembly is not possible until 25 minutes after the processing time.

Non-observance can lead to leaks in the assembly.

Preliminary work needed:

Remove UNDERBODY PROTECTION .
Remove the THRUST FIELD .
Remove VIBRATION DAMPER .
Remove BELT TENSIONER for alternator.

Removal:

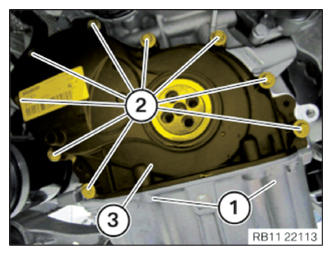

Loosen screws (1).

Courtesy of BMW OF NORTH AMERICA, INC.

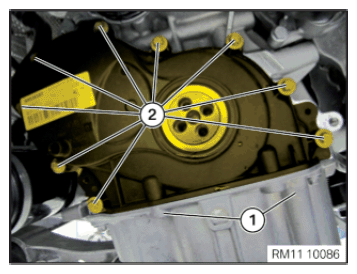

Unscrew the screws (1).

Unscrew the screws (2).

Remove the timing case cover (3).

Courtesy of BMW OF NORTH AMERICA, INC.

Preparation for installation:

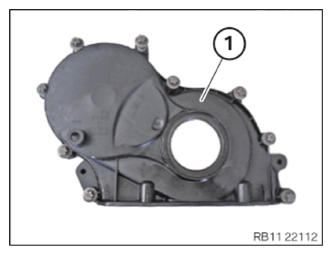

The timing case cover (1) must be replaced.

Parts: Timing case cover

Courtesy of BMW OF NORTH AMERICA, INC.

Attention!

Do not use any metal-cutting tools (e.g. abrasive cloth) for cleaning the sealing surfaces.

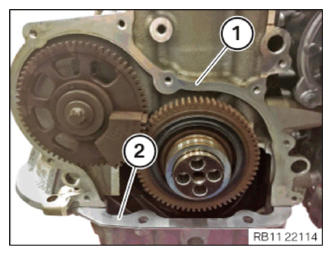

Clean the sealing residue off the sealing surfaces (1) and (2) using special tool 11 4 471 and 11 4 472.

Installation note:

Clean the sealing surfaces (1) and (2) using BRAKE CLEANER 3.3 .

Sealing surfaces (1) and (2) must be free of oil, grease and cleaning agents.

Courtesy of BMW OF NORTH AMERICA, INC.

Have special tool 2 469 803 ready.

Courtesy of BMW OF NORTH AMERICA, INC.

Apply sealing compound (1) on the special tool 2 469 803 as shown.

Parts: SEALING COMPOUND 2.2 .

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Attention!

Engines with surface sealant:

Maximum processing time for sealing bead is 10 minutes .

Commissioning of the assembly is not possible until 25 minutes after the processing time.

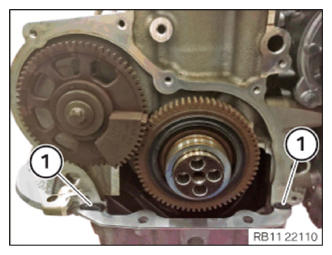

Apply approx. 5 mm sealing bead (1) as shown.

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble special tool 2 357 900 as shown.

Courtesy of BMW OF NORTH AMERICA, INC.

Attention!

Do not use motor oil or lubricant.

Attention!

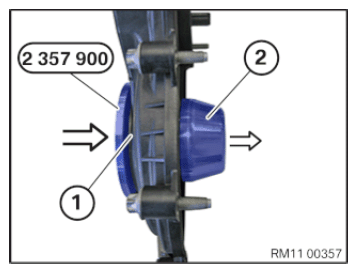

Special tool must be resting on timing case cover (1).

Carefully push special tool 2 357 900 through sealing ring into timing case cover and abut.

Remove installation aid (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Fit special tool 2 357 900 with timing case cover (1) on crankshaft hub (2).

Courtesy of BMW OF NORTH AMERICA, INC.

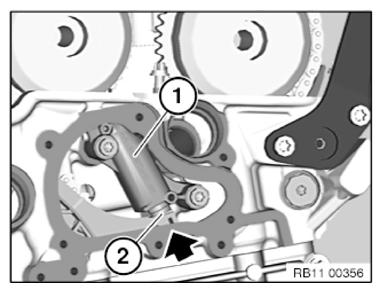

NOTE: Pay attention to both guide pins (2).

Mount timing case cover (1) on crankcase in arrow direction.

Abut screws.

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Dust lip (1) must be facing outwards.

Remove special tool 2 357 900.

Check installation position of the dust lip (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Abut screws (2) crosswise.

Abut screws (1).

Tighten the screws (2) crosswise.

Tightening torque 11 14 1AZ .

Tighten down screws (1).

Tightening torque: 11 13 2AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten down screws (1).

Tightening torque: 11 61 3AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

Install BELT TENSIONER for alternator.
Install VIBRATION DAMPER .
Install THRUST FIELD .
Install UNDERBODY PROTECTION .
