Removing and installing/replacing vibration damper (B36 engine) (Cooper base)
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2021 MINI Cooper, 2020 MINI Cooper, 2019 MINI Cooper, 2018 MINI Cooper, and 2017 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.
Special tools required:
- 11 8 180
- 2 288 159
Preliminary work needed:
- Remove FRONT UNDERBODY PROTECTION .
- Remove THRUST FIELD .
- Remove FRONT RIGHT WHEEL ARCH COVER .
- Remove DRIVE BELT .
Removal:

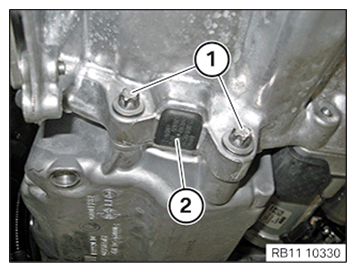

Undo the transmission bolts (1).
Remove protective cap (2).

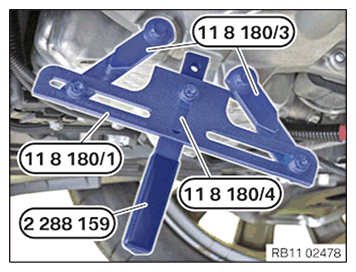

Prepare special tool 11 8 180/1 with special tool 11 8 180/3, 11 8 180/4 and 2 288 159.
Fix the special tool 11 8 180 with the housing screws.
Slide the special tool 2 288 159 in the transmission housing and fix the flywheel.
Tighten down all screws.

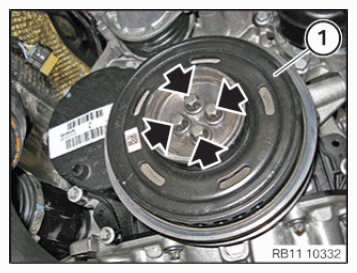

Slacken all screws on the vibration damper (1).
Remove vibration damper (1).
Installation:
Position vibration damper (1).
Tighten down all screws.
Tightening torque 11 23 1AZ .
Undo the Torx screws.
Remove special tool 11 8 180 with 2 288 159.
Tighten down Torx screws (1).
Tightening torque 23 00 1AZ .
Mount protective cap (2).
Required reworking:
- Install DRIVE BELT .
- Install FRONT RIGHT WHEEL ARCH COVER .
- Install THRUST FIELD .
- Install FRONT UNDERBODY PROTECTION .
