51 24 004 Adjusting rear lid lock: Notes
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2019 MINI Cooper, 2018 MINI Cooper, 2017 MINI Cooper, 2016 MINI Cooper, and 2015 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.
Prerequisite:
Rear lid must be correctly adjusted to fit; if necessary, ADJUST REAR LID .
For ideal adjustment, refer to GAP DIMENSIONS .
Necessary preliminary tasks:
- Remove COVER FROM TAIL PANEL

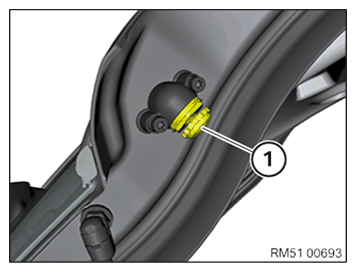

Completely screw in stop pad (1) left/right.
See BUMP STOPS .

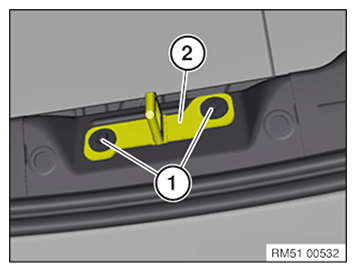

Slacken screws (1) until striker (2) can still just be moved and centers itself.
IMPORTANT:
Striker (2) must not brush against rear lid lock.
Close rear lid.
Check GAP DIMENSIONS and locking comfort.
If necessary, repeat procedure.
NOTE:
When the tailgate is closed, the striker must not touch or scrape against the rear lid lock. Look out for scratch marks.
Open tailgate.
Tighten down screws (1).
Tightening torque 51 24 2AZ .
Screw out stop pad (1) left/right until they are in contact with the tailgate.
It must be possible to pull out paper strips with moderate friction resistance between the tailgate and stop pad (1).
Then screw out stop pad (1) one-half rotation further.
See BUMP STOPS .
