Removing and installing/replacing right glove compartment with housing (Cooper Convertible)
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2021 MINI Cooper, 2020 MINI Cooper, 2019 MINI Cooper, 2018 MINI Cooper, and 2017 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.
When working on trim panel components, make sure that visible surfaces are not scratched or damaged (e.g. by sharp-edged tools).
Preliminary work needed:
- Remove SIDE PANEL on dashboard on right.
Removal:

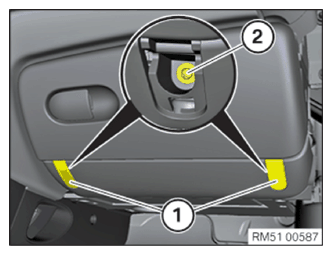

Pull out covers (1) and release the underlying screws (2).

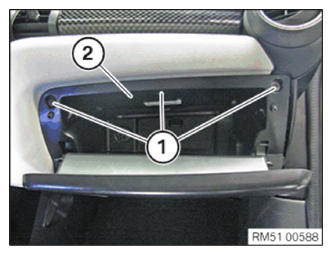

Unscrew the screws (1).
Remove glove compartment (2) inwards and disconnect associated plug connections.
Installation:
When replacing, swap over the following parts:
- Install GLOVE COMPARTMENT DAMPER .
- Install GLOVE COMPARTMENT COVER .
- Install GLOVEBOX LIGHT
Connect associated connector and connect air hose if required.
Insert glove compartment (2) and tighten with screws (1).
Tighten down screws (2).
Clip in the covers (1).
Required follow-up work:
- Install right SIDE PANEL on dashboard.
