Removing and installing/replacing glove compartment cover (Cooper Convertible)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2021 MINI Cooper, 2020 MINI Cooper, 2019 MINI Cooper, 2018 MINI Cooper, and 2017 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Preliminary work needed:

Remove right GLOVE COMPARTMENT with housing.

Removal:

Release damper (1) from retainer (2) and twist approx. 40° in arrow direction.

G13797397

Courtesy of BMW OF NORTH AMERICA, INC.

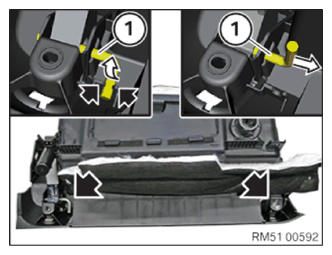

Release hinge bolt (1) from stop and twist until hinge bolt (1) can be pulled out.

Repeat process on second hinge bolt (1).

Feed out glove box lid.

G13797398

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

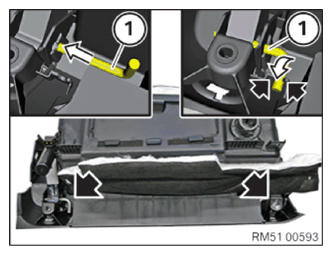

Feed in glove box lid.

Insert hinge bolt (1) and clip in to stop.

Repeat procedure for second hinge bolt (1).

G13797399

Courtesy of BMW OF NORTH AMERICA, INC.

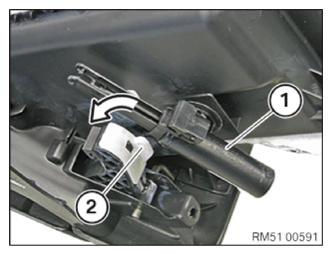

Lock damper (1) on retainer (2).

G13797400

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

Install right GLOVE COMPARTMENT with housing.
