63 31 150 Removing and installing/replacing glovebox light (Cooper Convertible)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2021 MINI Cooper, 2020 MINI Cooper, 2019 MINI Cooper, 2018 MINI Cooper, and 2017 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: NOTE the instructions for bulb exchange (interior light).

Removal:

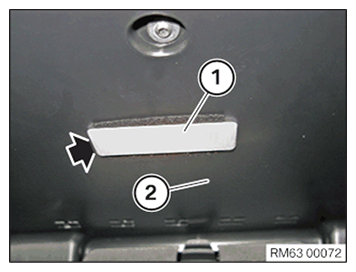

Pry glove box light (1) out of glove compartment (2).

Disconnect associated connector and remove glove box light (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

If necessary, remount BULB .
Note: BULB TYPE .

Installation:

Connect associated connector.

Join glove box light (1) in glove compartment (2).

Courtesy of BMW OF NORTH AMERICA, INC.
