Removing and installing/replacing damper for glove compartment (Cooper Convertible)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2021 MINI Cooper, 2020 MINI Cooper, 2019 MINI Cooper, 2018 MINI Cooper, and 2017 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Preliminary work needed:

Remove right GLOVE COMPARTMENT with housing.

Removal:

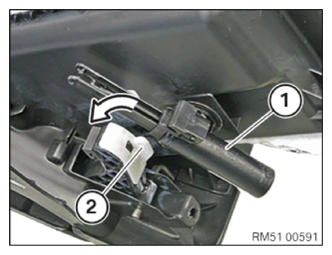

Release damper (1) from the fixing holder (2).

Twist damper (1) approx. 90° in arrow direction and remove.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

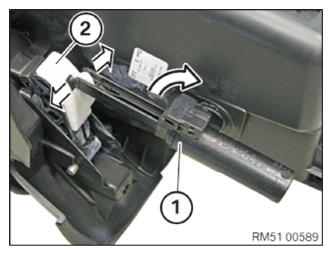

Insert damper (1) and twist approx. 90° in arrow direction.

Engage damper (1) on retainer (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

Install right GLOVE COMPARTMENT with housing.
