Replace the center spoiler on rear bumper panel

Preliminary work needed:

• Remove BUMPER COVER .

Removal:

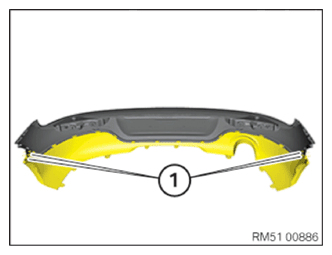

Disassemble blind rivet (1).

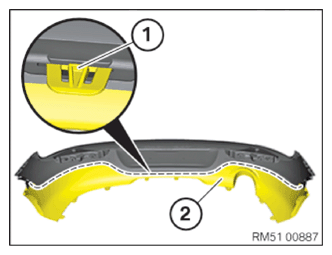

Release the detents (1) and remove spoiler (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Courtesy of BMW OF NORTH AMERICA, INC.

When replacing, swap over the following parts:

• TAIL LIGHT BUMPER .

For equipment specification with PDC:

• Ultrasonic sensors. Refer to: A REAR MIDDLE LEFT ULTRASONIC TRANSDUCER and ONE REAR LEFT ULTRASONIC SENSOR .

Installation:

Position spoiler (2) and engage in the detents (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Mount blind rivets (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Required reworking:

• Install BUMPER COVER .
