Removing and installing rear bumper panel

Preliminary work needed:

• Remove left and right WHEEL ARCH TRIMS .
• Remove both NUMBER PLATE LIGHTS .

Removal:

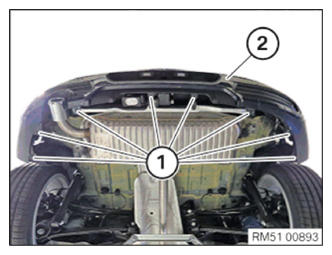

Remove clips (1).

Courtesy of BMW OF NORTH AMERICA, INC.

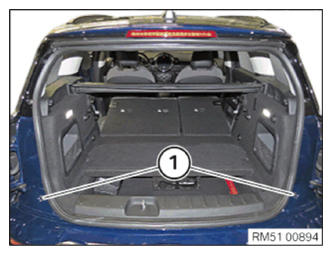

Release left and right screws (1).

Courtesy of BMW OF NORTH AMERICA, INC.

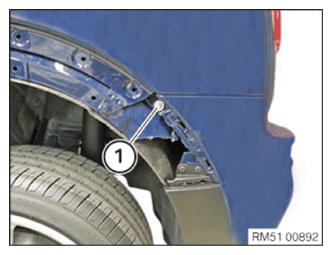

Release left and right screws (1).

Unclip the bumper cover from the lateral guides.

Courtesy of BMW OF NORTH AMERICA, INC.

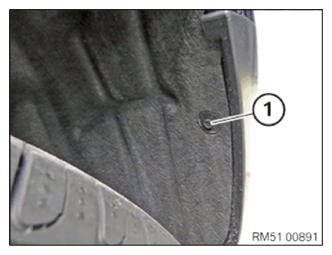

Unscrew the screws (1).

Guide out bumper cover (2) towards rear with aid of a second person.

Disconnect plug connections for tail lights and ultrasonic sensors.

Remove the bumper cover (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Position bumper cover (2) with the aid of a second person.

Connect plug connections for tail lights and ultrasonic sensors.

Tighten down screws (1).

Tightening torque 51 12 3AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Clip the bumper cover into the lateral guides.

Tighten screws (1) on left and right.

Tightening torque 51 12 4AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten screws (1) on left and right.

Tightening torque 51 12 3AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Install clips (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Required reworking:

• Install left and right WHEEL ARCH TRIMS .
• Install both NUMBER PLATE LIGHTS .
