Removing and installing/replacing rear left or right safety belt (Cooper Convertible)

Preliminary work needed:

Removal:

Remove screw (1).

Remove end lining (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip seat belt finisher strip (1) upwards.

Courtesy of BMW OF NORTH AMERICA, INC.

Feed out seat belt strap (1) from seat belt finisher strip (2).

Courtesy of BMW OF NORTH AMERICA, INC.

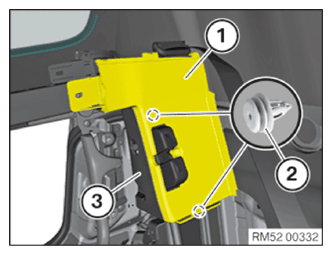

Release the trim (1) on the clips (2).

Unclip the trim (1) from the trim panel (3).

Courtesy of BMW OF NORTH AMERICA, INC.

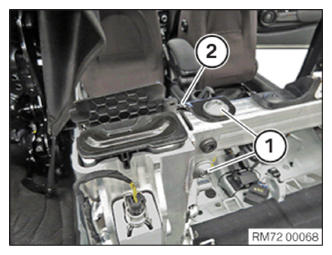

Release the screws (1) from the seat belt guide loop (2).

Courtesy of BMW OF NORTH AMERICA, INC.

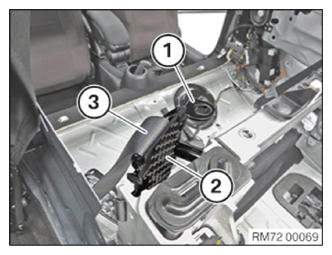

Swivel the seat belt guide loop (1) forward.

Unclip cover (2).

Feed out seat belt strap (3).

Courtesy of BMW OF NORTH AMERICA, INC.

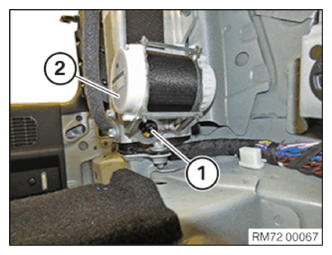

Remove screw (1).

Remove safety belt (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Install safety belt (2).

NOTE: Make sure the guide is correctly installed in body.

replace screw (1).

Tighten screw (1).

Tightening torque 72 11 20AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Insert the seat belt strap (3) at the seat belt guide loop (1).

Clip in cover (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Position the seat belt guide loop (2).

replace screw (1).

Tighten down screws (1).

Tightening torque 72 11 21AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Insert the seat belt strap (1) into the trim panel (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Mount end lining (2).

NOTE: End lining (2) is encoded to prevent incorrect assembly.

replace screw (1).

Tighten screw (1).

Tightening torque 72 11 22AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:
