Removing and installing/replacing left trunk wheel arch trim (Cooper Convertible)

Preliminary work needed  :

• Remove the mounting for left STORAGE SHELF .

Removal:

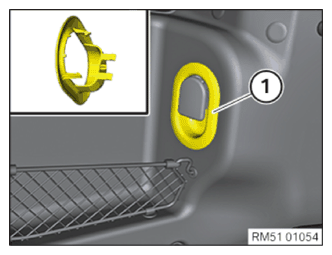

Detach cover (1).

Courtesy of BMW OF NORTH AMERICA, INC.

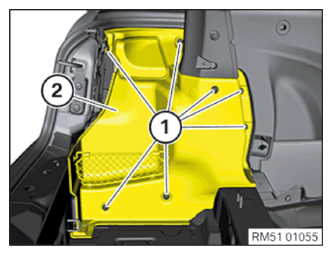

Release expanding rivet (1).

Take out and remove trunk wheel arch panel (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Feed in trunk wheel arch panel (2).

Mount expanding rivets (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Mount cover (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Required reworking  :

• Install the mounting for left STORAGE SHELF .
