Removing and installing/replacing lower rollover protection trim panel (Cooper Convertible)

Preliminary work needed:

• Open soft top

Removal:

Lever out and remove covers (1).

Release expanding rivet (2).

Courtesy of BMW OF NORTH AMERICA, INC.

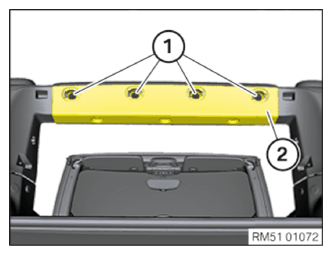

Unscrew the screws (1).

Unclip cover (2) carefully from the upper trim panel and remove downwards.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation  :

Install cover (2) and clip in on the top trim panel.

Tighten down screws (1).

Tightening torque 51 46 1AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Install covers (1).

Mount expanding rivets (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

• Close soft top.
