REP-TAT-P-5462-02 Installing left or right rollover protection system

Follow-up work

• Install the RELEASE UNIT for the left or right rear seat backrest
• Secure the REAR SEAT BELT
• Install the TRIM PANEL  of the roll bar on the side
• Retract the ROLLOVER PROTECTION SYSTEM
• Install the SEAT BELT FINISHER STRIP

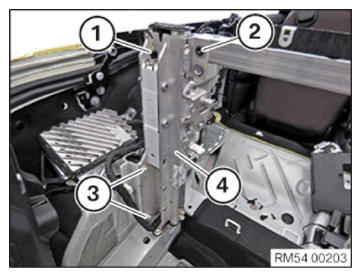

• Position rollover protection system (4).
• Replace screws (3).

  Parts:  screw

• Tighten down screws (3).
  TIGHTENING TORQUE SPECIFICATION



  Rollover protection system to body

  M8x20

  Replace screws.

  28 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Tighten down screw (2).

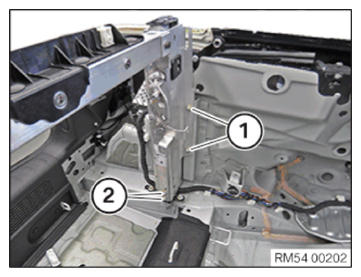

• Connect connectors (1) and lock.
• Replace screws (1).

  Parts:  screw

• Tighten the screws (1).
  TIGHTENING TORQUE SPECIFICATION



  Rollover protection system to body

  M8x20

  Replace screws.

  28 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Replace screws (2).

  Parts:  screw

• Tighten screws (2).
