REP-TAT-P-5462-02 Retracting the rollover protection system

Prerequisite

Convertible top is completely open.

NOTE: TECHNICAL INFORMATION
Conduct the following operation with the assistance of a second person.

Insert screwdriver (1) into the rear bore.
Press and hold the screwdriver (1) in the direction of the arrow to relieve the detent (2).

Courtesy of BMW OF NORTH AMERICA, INC.

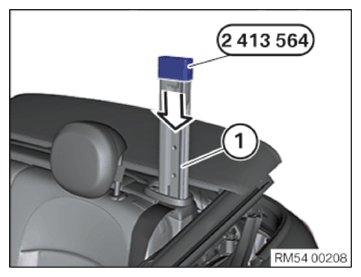

Place the special tool 2 413 564 on the rollover protection system (1).
Press the rollover protection system (1) all the way down and hold.
Remove the screwdriver from the rear bore.

Courtesy of BMW OF NORTH AMERICA, INC.

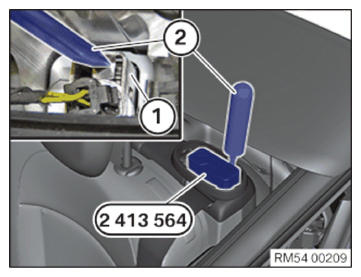

Hold down the rollover protection system with the special tool 2 413 564 .
Position screwdriver (2) on the igniter (1) and push down.
The Igniter (1) must audibly lock.
Remove special tool 2 413 564 .

Courtesy of BMW OF NORTH AMERICA, INC.

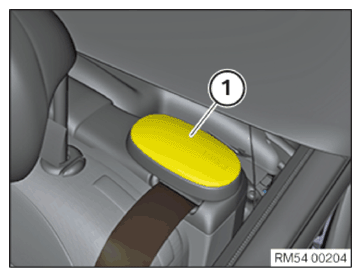

Install the trim panel (1).

Courtesy of BMW OF NORTH AMERICA, INC.

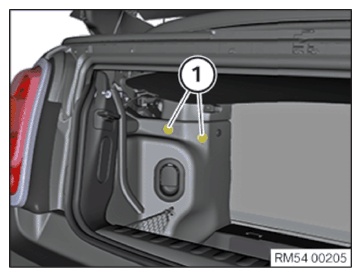

Install seal plug (1).

Courtesy of BMW OF NORTH AMERICA, INC.
