REP-TAT-P-5434-02 Installing the convertible top brace

Follow-up work

• Install both CONVERTIBLE TOP BRACE LOCKS
• Install the SEAL  on the convertible top brace
• Install the TRIM STRIP  on the convertible top
• Install LOADING AID

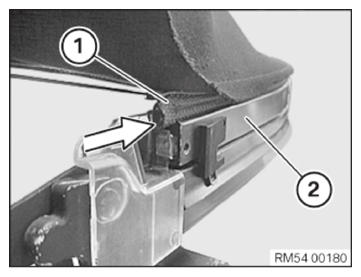

• Insert the convertible top fabric (1) into the convertible top brace (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Tighten the screw (1) the left and right.

  Parts:  screw

  TIGHTENING TORQUE SPECIFICATION



  Convertible top brace to convertible top brace support

  Replace screw.

  Joining torque

  9.5 Nm

  Angle of rotation  90°

  Courtesy of BMW OF NORTH AMERICA, INC.

• Insert the protective cap (1) on the left and right.
  NOTE: If damaged, install the new cover cap with part number 07 14 7 127 540.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Clip in the connector (2) into the convertible top brace bearing (3).
• Connect connector (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

  NOTE: Perform the steps on the right and left side.

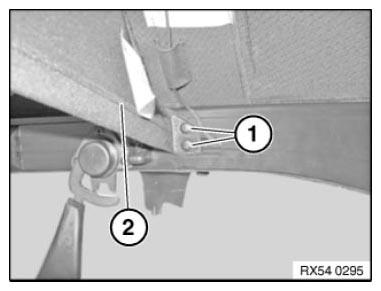

• Secure the headlining (2) using new rivets (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

  NOTE: Perform the steps on the right and left side.

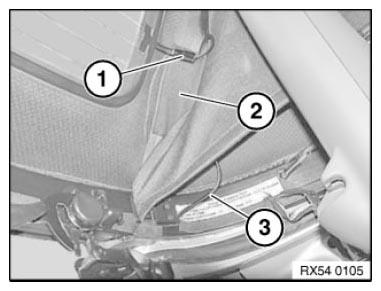

• Feed the wiring harness (3) into the loops of the luggage strap (2).
• Connect connector (1).

Courtesy of BMW OF NORTH AMERICA, INC.
