REP-TAT-P-5434-01 Removing the seal on the convertible top brace

Preliminary work

• Open the LOADING AID

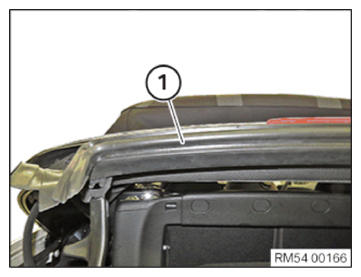

• Loosen screws (1) left and right.

  Courtesy of BMW OF NORTH AMERICA, INC.

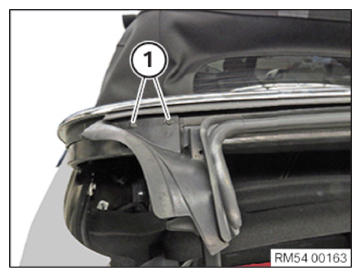

• Unclip the end of the seal (1) from the convertible top brace on the left and right.

  Courtesy of BMW OF NORTH AMERICA, INC.

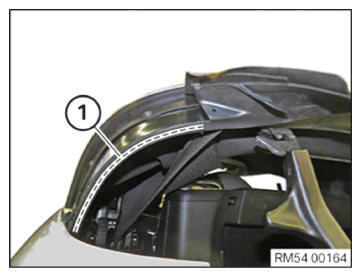

• Unclip the seal (1) from the convertible top brace across the entire length.

Courtesy of BMW OF NORTH AMERICA, INC.
