54 31 Convertible_Top_Linkage
>>
Remove and install/replace trim strip on the convertible top, left or right (Cooper Convertible)
>>
REP-TAT-P-5434-01 Removing the trim strip on the convertible top
REP-TAT-P-5434-01 Removing the trim strip on the convertible top
Preliminary work
Open
LOADING AID

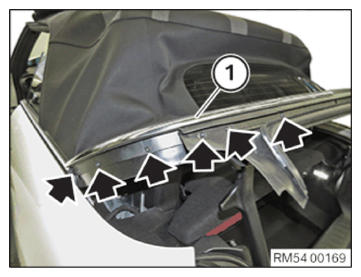

Loosen screws.
Remove the trim strip (1) towards the top.
