Opening and closing loading aid (Easyload)

Preliminary work needed:

• Opening tailgate

Removal:

Courtesy of BMW OF NORTH AMERICA, INC.

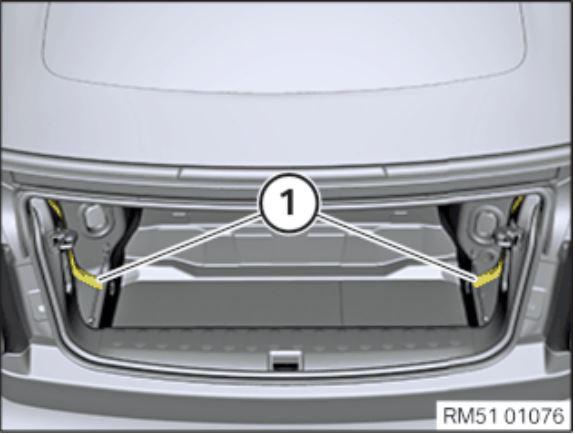

Unlock soft top.

For this unlock locking lever from the left and right convertible top brace (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Courtesy of BMW OF NORTH AMERICA, INC.

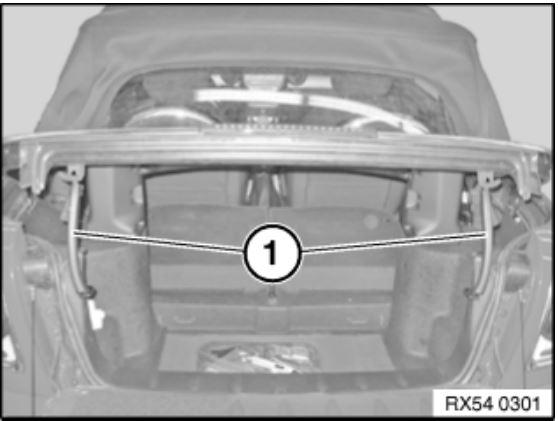

Remove locking lever of the left and right convertible top brace (1) from the strikers.

Lock soft top.

Required follow-up work:

• Close rear lid
