Removing and installing transmission (GS6-58BG) (Cooper base)
Special tools required:
- 00 2 030
- 234150
If there are signs of corrosion, the rust must be removed and the threads must be cleaned before removal .
Replace rusted, damaged screws.
Failure to comply with this instruction will result in serious damage to the engine block and transmission.
Safety instructions:
Before removing the transmission, it is essential to check the firm fit of the engine mount and ensure that the rubber seals of the engine mount is in perfect condition. If the rubber seals is porous and has cracks, remove the TRANSMISSION WITH ENGINE .
Preliminary work needed:
- Remove VEHICLE BATTERY .
- Drain off TRANSMISSION OIL .
- Secure engine in INSTALLATION POSITION .
- Remove FRONT AXLE SUPPORT
.
No wheel alignment is required for removal and installation of front axle support.
- Release transmission end OIL SUMP screw connection.
- Remove STARTER MOTOR .
- Remove LEFT OUTPUT SHAFT only at transmission end and hang up.
- Remove RIGHT OUTPUT SHAFT only at transmission end and hang up.
Removal:

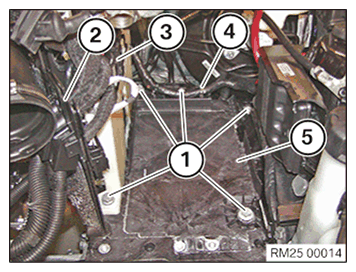

Unscrew the screws (1).
Release partition wall (2) from holder and remove.
Release control unit (3) from holder.
Detach wiring harness (4) from battery tray (5).
Remove battery tray (5).

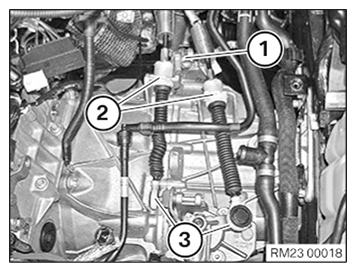

Disengage the clip on the stop/holder (2), while doing so slightly bend away the lugs from the stop/holder (2).
Release screw (1) and release ground strap from transmission.

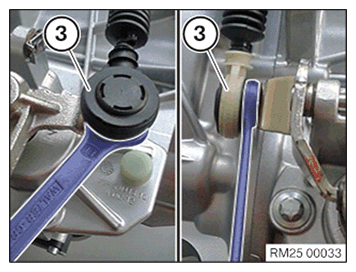

Lever the insert stands (3) of the selector lever cables from the ball joints with the open-end wrench SW13.

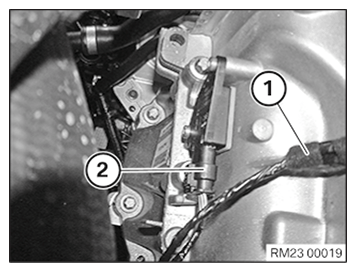

Disconnect plug connection (2) of gear sensor.
Detach cable (1) with holder from transmission.
If possible, do not shift clutch tappet of clutch slave cylinder
Displacement of clutch tappet caused by removal will cause a small amount of fluid to leak. This leakage of fluid does not mean that the clutch slave cylinder is damaged.
Replacement is therefore not necessary!

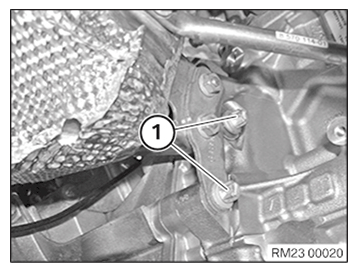

Release screws (1) and remove clutch slave cylinder head.

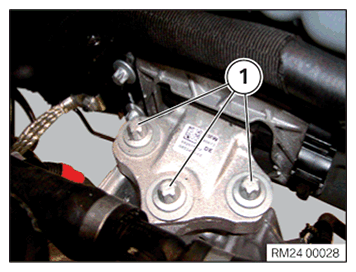

Unscrew the screws (1).
Unscrew the screws (1).
Supporting transmission:
With special tools 23 4 150 and 00 2 030
Support transmission from underneath.
Secure transmission with luggage strap (3).
Tasks are described in TRANSMISSION HOLDER .
After completion of repair work, check transmission oil level.

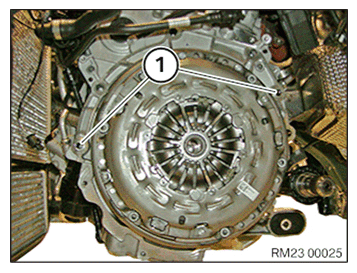

Loosen screws.
Pull transmission downwards and remove.
Check that lining sleeves (1) are correctly seated.
Replace damaged lining sleeves.
Remove grease from transmission input shaft and clean shaft.
Do not grease transmission input shaft.
Check clutch disc for contact corrosion in gearing and REPLACE if necessary.
Installation:
- If reusing the clutch:
Mechanically remove existing grease and lining abrasion from gearings of clutch disc (with a cloth).
Clean clutch hub and re-grease.
In new clutch discs the gearing is already greased.
Grease: Lubricant MI-Setral-43 N, BMW/MINI part number 83 23 2 152 082 (40g tube)

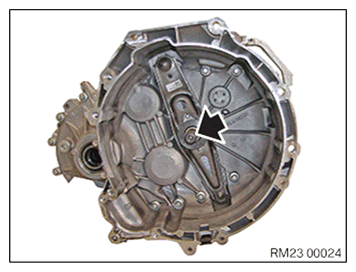

- Remove and clean RELEASE BEARING AND RELEASE LEVER .
- Add TRANSMISSION FLUID .
If the threaded holes are damaged, install HELICOIL insert M10x25 (part number 33 30 6 782 756).
Failure to comply with this instruction will result in serious damage to the transmission.
Note the exact screw length.
Install screws that correspond to the original length.
The oil pan can be damaged if the wrong screw length is used!
Incorrect : Do not use screw (1) (starter screw connection) for the lower screw connection of the transmission.
Correct : Use screw (2) (M8x40) under all circumstances for the lower screw connection of the transmission and flange-mount the transmission.

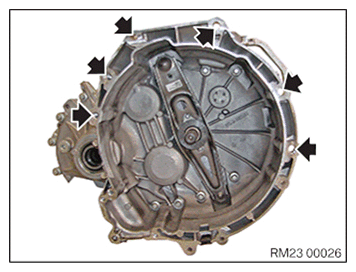

Tighten screws (arrows).
Tightening torque 23 00 1AZ .
Tighten down screws (1).
Tightening torque 22 32 1AZ .
Tighten down screws (1).
Tightening torque 23 00 1AZ .

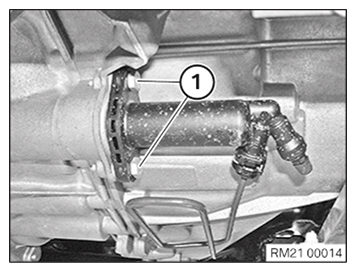

Install clutch slave cylinder.
Tighten down screws (1).
Tightening torque 21 52 1AZ .
Insert plug connection (2) of gear sensor
Clamp cable (1) with holder on transmission.
Check if the insert stands on the ends of the selector lever cables (3) are undamaged.
Tighten ground strap on transmission with screw (1).
Manually insert the clip on the stop/holder (2), without twisting the selector lever cable.
Press the insert stands (3) of the selector lever cables onto the ball joints, without twisting the selector lever cables.
Install battery tray (5).
Tighten down screws (1).
Install wiring harness (4) on battery tray (5).
Insert control unit (3) in holder.
Insert partition wall (2) in holder.
Required reworking:
- Install LEFT OUTPUT SHAFT .
- Install RIGHT OUTPUT SHAFT .
- Tighten transmission end OIL SUMP screw connection.
- Install STARTER .
- Install FRONT AXLE SUPPORT
.
No wheel alignment is required for removal and installation of front axle support.
- Add TRANSMISSION FLUID .
- Install VEHICLE BATTERY .
