Removing and installing or replacing clutch (Cooper)

Special tools required:

• 11 9 811
• 11 9 265
• 21 2 170
• 2 288 165
• 2 358 471

Preliminary work needed:

• Remove TRANSMISSION .

Removal:

Block flywheel with Torx screw (1) and special tools 11 9 811 and 11 9 265.

Courtesy of BMW OF NORTH AMERICA, INC.

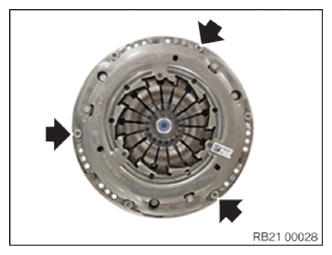

Loosen 3 screws, in order to fit special tool 21 2 170 with the pressure plate 2 288 165.

Courtesy of BMW OF NORTH AMERICA, INC.

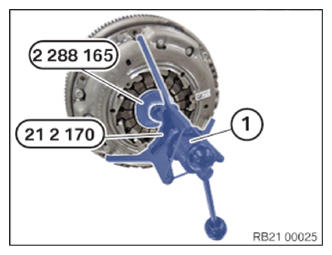

Fit special tool 21 2 170 with the pressure plate 2 288 165 and tighten down at knurled screw (1).

Courtesy of BMW OF NORTH AMERICA, INC.

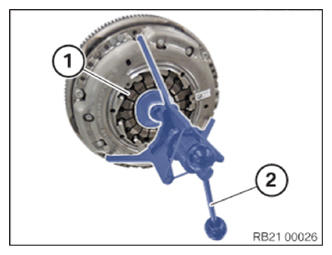

Screw in the spindle (2) until the diaphragm spring (1) is preloaded and the clutch disk is free of tension.

Courtesy of BMW OF NORTH AMERICA, INC.

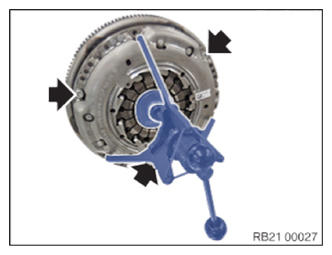

Loosen the remaining 3 screws and remove the clutch with clutch disc from the flywheel.

Courtesy of BMW OF NORTH AMERICA, INC.

Check the clutch disc for damage and contact corrosion in the hub profile and replace if necessary.

Check clutch disc for wear:

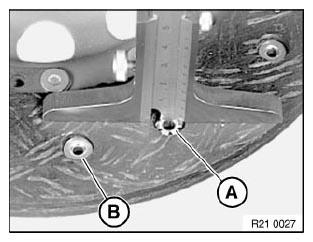

Measure lining protrusion at lining rivets at closing head (A) in each case.

1. Closing head
2. Swage head

Courtesy of BMW OF NORTH AMERICA, INC.

Replace clutch disc with the clutch if lining protrusion at closing head (A) is less than 1 mm.

Push clutch disk onto the cleaned transmission input shaft and check for easy movability.

Clean friction surface only.

Check clutch for wear and damage and replace if necessary.

Installation (reinstalling removed clutch and clutch disc):

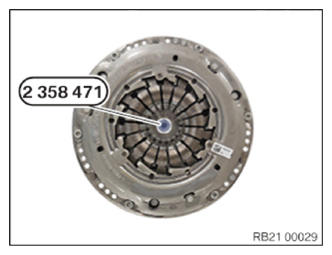

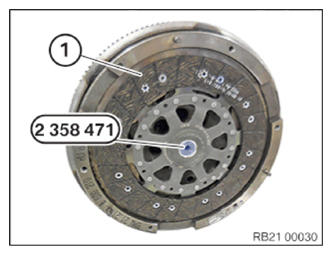

Center clutch disc (1) with special tool 2 358 471.

Courtesy of BMW OF NORTH AMERICA, INC.

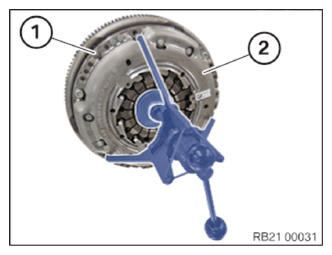

Fit clutch (2) together with special tool to the flywheel.

Pay attention to dowel pins (1).

Clutch (2) must be secured using dowel pins (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Insert 3 screws and tighten.

Part:  Replace screws.

Tightening torque 21 21 1AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Release spindle (2) until diaphragm spring (1) is completely relieved.

Courtesy of BMW OF NORTH AMERICA, INC.

Release knurled screw (1) and remove special tool 21 2 170 from clutch.

Courtesy of BMW OF NORTH AMERICA, INC.

Insert 3 screws and tighten.

Part:  Replace screws.

Tightening torque 21 21 1AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Withdraw special tool 2 358 471 from clutch disc with aid of accompanying screw.

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

• Install TRANSMISSION .

Installation (installing new clutch):

The DISENGAGEMENT MODULE  included in the new replacement clutch set and the new GUIDE SLEEVE must be installed.

Check the BALL HUB  and replace it if necessary.

Ball hubs differ in length, diameter and visually by the flat portion (1)! See graphic.

It must be ensured that the same ball hub is installed again!

Non-compliance may lead to damage to the clutch and transmission!

Courtesy of BMW OF NORTH AMERICA, INC.

Center clutch disc (1) with special tool 2 358 471.

Courtesy of BMW OF NORTH AMERICA, INC.

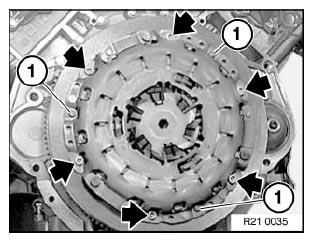

Push clutch onto dowel pins (1) located in flywheel and tighten down the screws.

Part:  Replace screws.

Tightening torque 21 21 1AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

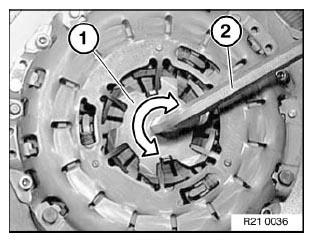

Carefully unscrew stop (1) clockwise or counterclockwise using a size 14 (2) Allen wrench.

Courtesy of BMW OF NORTH AMERICA, INC.

2 358 471 Withdraw special tool from clutch disc with aid of accompanying screw (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Necessary reworking:

• Install TRANSMISSION .
