Replacing guide sleeve for disengagement module (GS6-58BG) (Cooper base)

Preliminary work needed:

• Remove TRANSMISSION .
• Remove CLUTCH RELEASE and release lever from guide tube.

Removal:

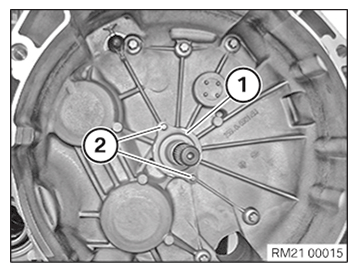

Unscrew the screws (2).

Remove guide tube (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Install guide tube (1).

Tighten down screws (2).

Tightening torque 23 11 1AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

• Position CLUTCH RELEASE and release lever on guide tube
• Install TRANSMISSION .
