11 36 042 Removing and installing/replacing intake adjuster (N18)

WARNING: This page is about a different car, the 2016 MINI Cooper Paceman, 2015 MINI Cooper Paceman, 2014 MINI Cooper Paceman, and 2013 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 120
11 9 550
11 9 551
11 9 552
11 9 590
11 7 440
11 9 340

IMPORTANT: Mount special tool 11 9 550 to open the central bolts on the intake adjuster and the camshaft.
The timing is not determined at the firing TDC of cylinder no. 1.
Modified procedure for timing adjustment.
All pistons are in the 90° position.
Check locking of adjusters.

Necessary preliminary work:

Remove CYLINDER HEAD COVER .
Check TIMING .

Slide in special tool 11 9 590 in direction of arrow.

Rotate flywheel (1) at the central bolt on till the TDC firing position (cylinder no. 1) is reached.

IMPORTANT: The OT hole can be accidentally mixed up.

Fig 1: Locking Flywheel With Special Tool (11 9 590)

G04796154

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Check lock on VANOS unit.
Turn camshaft in direction of rotation at hexagon head.
The adjusters are locked in the initial position when the camshafts are non-positively connected to the adjusters.
If no fixed connection to the camshaft can be established, the adjuster is faulty and must be replaced.

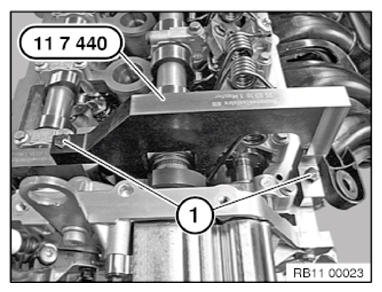

Place special tool 11 7 440 onto the camshafts and secure using the two screws (1).

Fig 2: Positioning Special Tool (11 7 440) On Intake And Exhaust Camshaft

G10000894

Courtesy of BMW OF NORTH AMERICA, INC.

Release chain tensioner (1) (have a cleaning cloth ready).

Tightening torque: 11 31 4AZ .

Fig 3: Identifying Chain Tensioner

G04796303

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

Fig 4: Identifying Screw

G04796335

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten screws (2).

Remove slide rail (1).

Fig 5: Identifying Tensioning Rail And Screws

G04789810

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Only release and secure central bolts (1 and 2) using special tool 11 7 440 .

Release central bolts (1 and 2).

Take VANOS units off of the timing chain.

Fig 6: Identifying Central Bolts On Camshafts

G04796308

Courtesy of BMW OF NORTH AMERICA, INC.

The intake and exhaust camshaft adjusters are different.

VANOS is marked with IN for the intake camshaft.

VANOS is marked with EX for the exhaust camshaft.

Fig 7: Identifying Intake And Exhaust Camshaft Adjusters

G04796337

Courtesy of BMW OF NORTH AMERICA, INC.

Position exhaust camshaft adjuster (2) at exhaust camshaft.

The installation position of the camshaft adjusters can be freely selected.

Screw in central bolt (3) and release again by 90°.

Fig 8: Identifying Exhaust Camshaft Adjuster And Central Bolt

G04796338

Courtesy of BMW OF NORTH AMERICA, INC.

Position intake camshaft adjuster at intake camshaft.

The installation position of the adjuster can be freely selected.

Screw in central bolt (1) and release again by 90°.

Fig 9: Identifying Central Bolts On Camshafts

G04796308

Courtesy of BMW OF NORTH AMERICA, INC.

Install tensioning rail (1).

Insert bolts (2).

Fig 10: Identifying Tensioning Rail And Screws

G04789810

Courtesy of BMW OF NORTH AMERICA, INC.

Insert screw (1).

Tightening torque. 11 31 2AZ .

Fig 11: Identifying Screw

G04796335

Courtesy of BMW OF NORTH AMERICA, INC.

Screw special tool 11 9 340 into the cylinder head.

Pretension timing chain with special tool to 0.4 Nm .

Fig 12: Identifying Special Tool (11 9 340)

G04796315

Courtesy of BMW OF NORTH AMERICA, INC.

Secure central bolt (1) with special tool 00 9 120 .

Tightening torque: 11 36 1AZ .

Fig 13: Securing Central Bolt With Special Tool (00 9 120)

G04796317

Courtesy of BMW OF NORTH AMERICA, INC.

Secure central bolt (1) with special tool 00 9 120 .

Tightening torque: 11 36 1AZ .

Fig 14: Securing Central Bolt With Special Tool (00 9 120)

G04796316

Courtesy of BMW OF NORTH AMERICA, INC.

Fit CHAIN TENSIONER .

Check TIMING .

Assemble engine.
