11 12 000 Removing and installing/sealing cylinder head cover (N18)

Necessary preliminary tasks:

• Unclip ignition wiring harness on cylinder head.
• Remove IGNITION COILS .
• Remove INTAKE SILENCER HOUSING .

Release connector (1) and remove.

Unlock and detach vacuum line (2).

Lay ignition leads (3 and 4) to one side.

Unclip the cable from the holder (5).

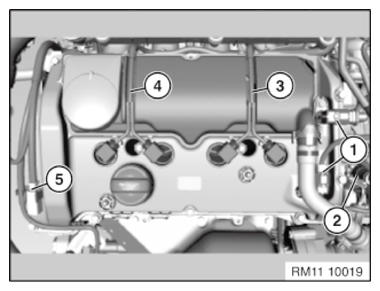

Fig 1: Identifying Connector, Vacuum Line, Ignition Leads And Cable Holder

Courtesy of BMW OF NORTH AMERICA, INC.

Release clamps (1 and 2).

Installation note:

Install air duct (4) dry and free from grease.

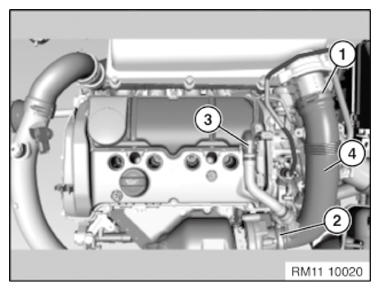

Fig 2: Identifying Air Duct, Clamps And Ventilation Line Lock

Courtesy of BMW OF NORTH AMERICA, INC.

convert the ventilation line.

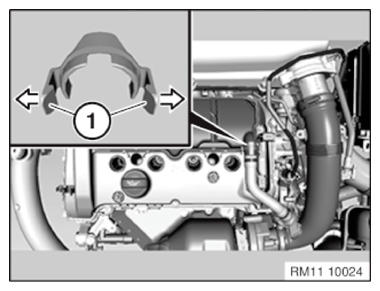

To do so, break off tabs of retaining clip (1) in direction of arrow outwards.

Installation note:

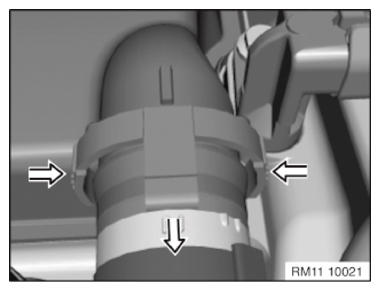

Fig 3: Releasing Retaining Clip Tabs

Courtesy of BMW OF NORTH AMERICA, INC.

A new retaining clip must be fitted.

Press locks together and detach ventilation line.

Fig 4: Detaching Ventilation Line

Courtesy of BMW OF NORTH AMERICA, INC.

Detach ground cable at screw connection (1).

Release cylinder head cover bolts in the sequence 12 to 1.

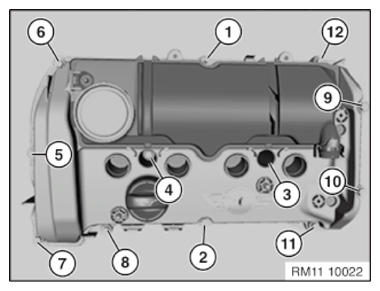

Fig 5: Valve Cover Bolts Tightening Sequence

Courtesy of BMW OF NORTH AMERICA, INC.

Replace gasket (1).

Replace all gaskets (2).

Installation note:

Clean all sealing surfaces.

Installation note:

Seal all edges and contact points on the cylinder head with Drei Bond 1209 sealing compound.

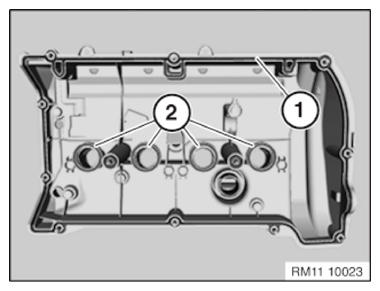

Fig 6: Identifying Gaskets

Courtesy of BMW OF NORTH AMERICA, INC.

Secure bolts for cylinder head cover in the sequence 1 to 12.

Tightening torque: 11 12 4AZ .

Fig 7: Valve Cover Bolts Tightening Sequence

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
