51 11 156 Removing and installing front bumper panel

Necessary preliminary tasks:

• Remove FRONT GRILLE
• Remove COVER ON WHEEL ARCH  from bumper panel

On vehicles from production date 08/2010:

• Remove CENTER COVER

Release the expanding rivets (1 and 2) according to the version.

Release screws (3).

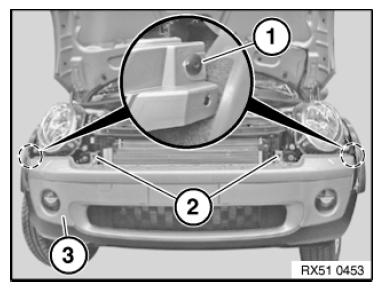

On vehicles with production date up to 08/2010:

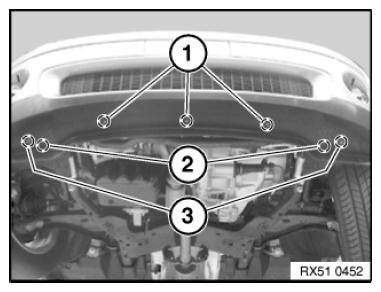

Release screws (1 and 2).

Pull bumper panel (3) slightly towards the front with aid of a 2nd person.

Disconnect plug connections, depending on version.

Remove bumper panel (3) towards the front with aid of a 2nd person.

Installation note:

Make sure foam insert is correctly positioned on support.

For adjustment, refer to BODY GAP DIMENSIONS .

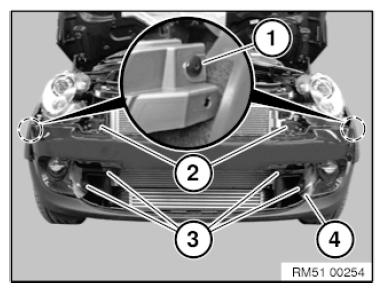

On vehicles from production date 08/2010:

Release screws (1 and 2).

Release expanding rivet (3).

Pull bumper panel (4) slightly towards the front with aid of a 2nd person.

Disconnect plug connections, depending on version.

Remove bumper panel (4) towards the front with aid of a 2nd person.

Installation note:

For adjustment, refer to BODY GAP DIMENSIONS .
