51 13 000 Removing and installing/replacing front grillE center section

Necessary preliminary work:

• Remove COVER FROM FRONT GRILLE

Release expanding rivets (1).

Press together latch mechanisms (2) and remove front grille (3) towards front.

Installation note:

Latch mechanisms (2) must not be damaged.

If necessary, replace faulty expanding rivets (1).

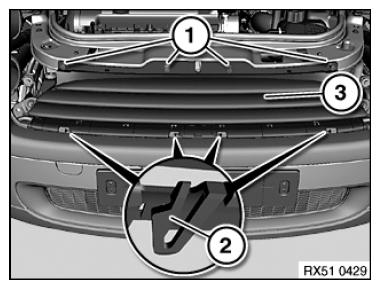

Fig 1: Identifying Expanding Rivets, Latch Mechanisms And Front Grille

Courtesy of BMW OF NORTH AMERICA, INC.
