41 00... Gap dimensions, body

NOTE: Symmetry of the gaps between left and right sides of the vehicle has top priority.
The door gaps must not deviate between the front and rear gap by more than 1.0 mm.
Adjust headlight and tail light with constant all-round gap (visually).

Dimensions in mm:

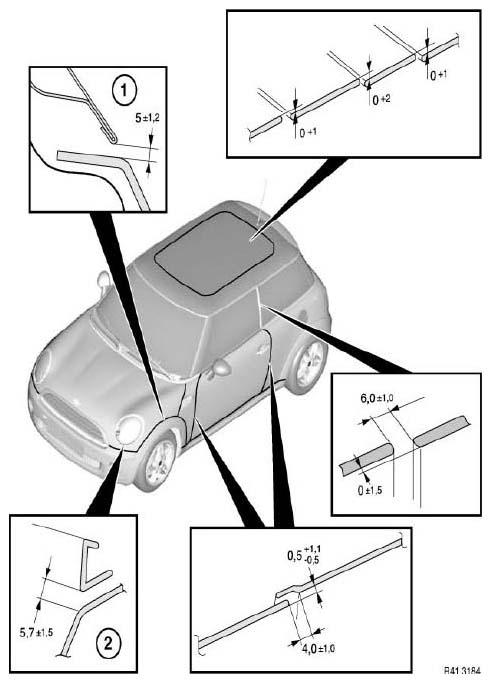

Fig 1: Body Panel Gap Dimensions - 1 Of 2

Courtesy of BMW OF NORTH AMERICA, INC.

Dimension (1) 5.0 is reduced in the rearward direction of travel to 3.9

Dimension (2) 5.7 is increased in the outward direction to 6.1

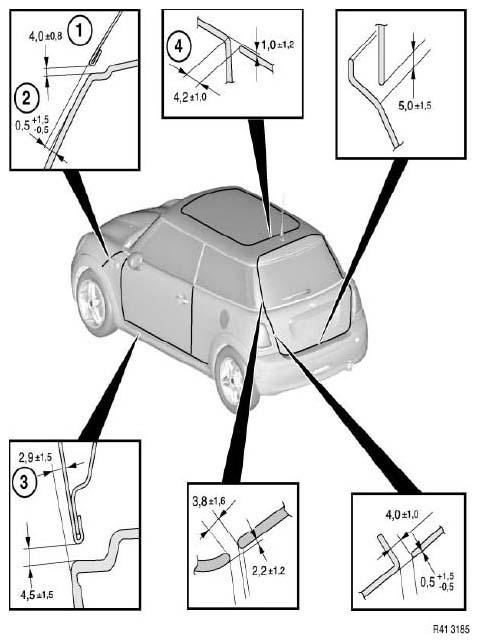

Fig 2: Body Panel Gap Dimensions - 2 Of 2

Courtesy of BMW OF NORTH AMERICA, INC.

Dimension (1) 4.0 is reduced in the rearward direction of travel to 3.1

Dimension (2) 0.5 is reduced in the rearward direction of travel to 0

Dimension (3) 2.9 is increased in the rearward direction of travel to 3.4

Dimension (4) 4.2 is reduced in the outward direction to 4.0
