33 11 021 Replacing radial shaft seal for drive flange on rear axle final drive

Special tools required:

Necessary preliminary tasks:

IMPORTANT:

The rear axle final drive may not be tilted by more than 45° during the installation procedure.

Pull out radial shaft seal (1) with special tools 24 1 420 and 13 5 250 .

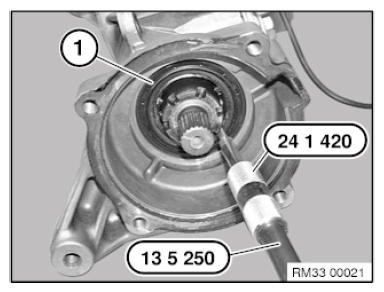

Fig 1: Pulling Out Radial Shaft Seal With Special Tools (24 1 420) And (13 5 250)

Courtesy of BMW OF NORTH AMERICA, INC.

Wet sealing lips and housing sheet metal flange of new radial shaft seal with final drive oil.

Drive in radial shaft seal with special tool 33 0 090 .

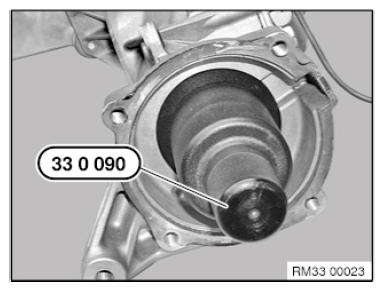

Fig 2: Driving Radial Shaft Seal With Special Tool (33 0 090)

Courtesy of BMW OF NORTH AMERICA, INC.

After installation:
