135250 Puller

Minimum set: Mechanical tools AM

NOTE: For removing injector nozzles or injectors from cylinder head

Storage Location: A11

B11

SI number: 01 06 98 (306)

Consisting of:

5 = 0495579 Adapter

NOTE: For removing steering shaft on E85.

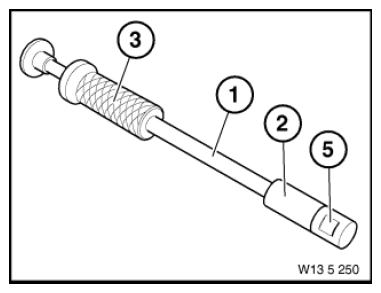

Fig 1: Identifying Puller (135250)

Courtesy of BMW OF NORTH AMERICA, INC.

1 = 0493338 Rod

NOTE: (Guide rod)

2 = 0493339 Bush

NOTE: (Threaded bush)

3 = 0493340 Weight

NOTE: (Weight)

4 = 0493379 Claw

NOTE: (Clamping claw) For removal of injector nozzles/engine: M57
