00 11... Checking/topping up oil level in rear axle final drive
WARNING:
DANGER OF POISONING
if oil is ingested/absorbed through the skin.
RISK OF INJURY if oil comes into contact with eyes and skin.
RISK OF INJURY if oil comes into contact with eyes and skin.
IMPORTANT:
Risk of damage.
To avoid serious damage to the rear axle final drive, it is essential to use only approved GEARBOX OILS in the rear axle final drive.
To avoid serious damage to the rear axle final drive, it is essential to use only approved GEARBOX OILS in the rear axle final drive.

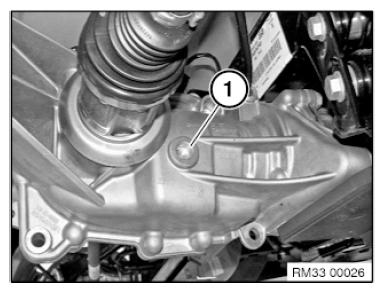

Open screw plug (1).
Check oil level.
If necessary, pour in final drive oil up to lower edge of opening for screw plug (1).
Installation note:
Replace screw plug (1) with O-ring.
Tightening torque 33 11 1AZ .
