54 34 370 Replacing bow

WARNING: This page is about a different variant/trim than selected.

Necessary preliminary tasks:

Disconnect plug connection (1) for heated rear window.

Feed wiring harness (3) out of tension strap loop (2) and bow.

Fig 1: Identifying Wiring Harness, Tension Strap Loop And Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Drill out rivets (1) for roofliner (2).

Fig 2: Identifying Rivets And Roofliner

Courtesy of BMW OF NORTH AMERICA, INC.

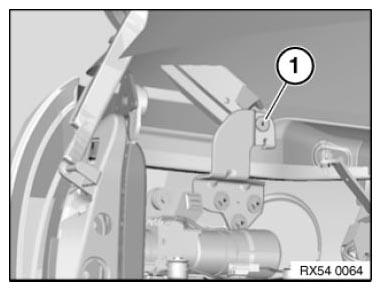

Release screw (1).

Installation:

Insert screw (1) with Loctite.

Fig 3: Identifying Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Pull soft top fabric (1) with wiring harness out of bow (2).

NOTE: Do not pull out soft top fabric by the pockets.

Fig 4: Pulling Soft Top Fabric

Courtesy of BMW OF NORTH AMERICA, INC.
